Zebra ZT411 Industrial Label Printer 300 DPI Thermal Transfer Tear-Off Touch Display ZT41143-T010000Z

Key Features

• Prints at 300 dpi for dense two-dimensional codes and fine text.
• Reaches up to 10 ips (254 mm/s) at 300 dpi, sustaining throughput on high-volume label runs.
• Prints a full 4.09 inches (104 mm) wide, covering standard 4-inch industrial label formats.
• 4.3-inch colour touch display walks operators through setup, calibration and error recovery.

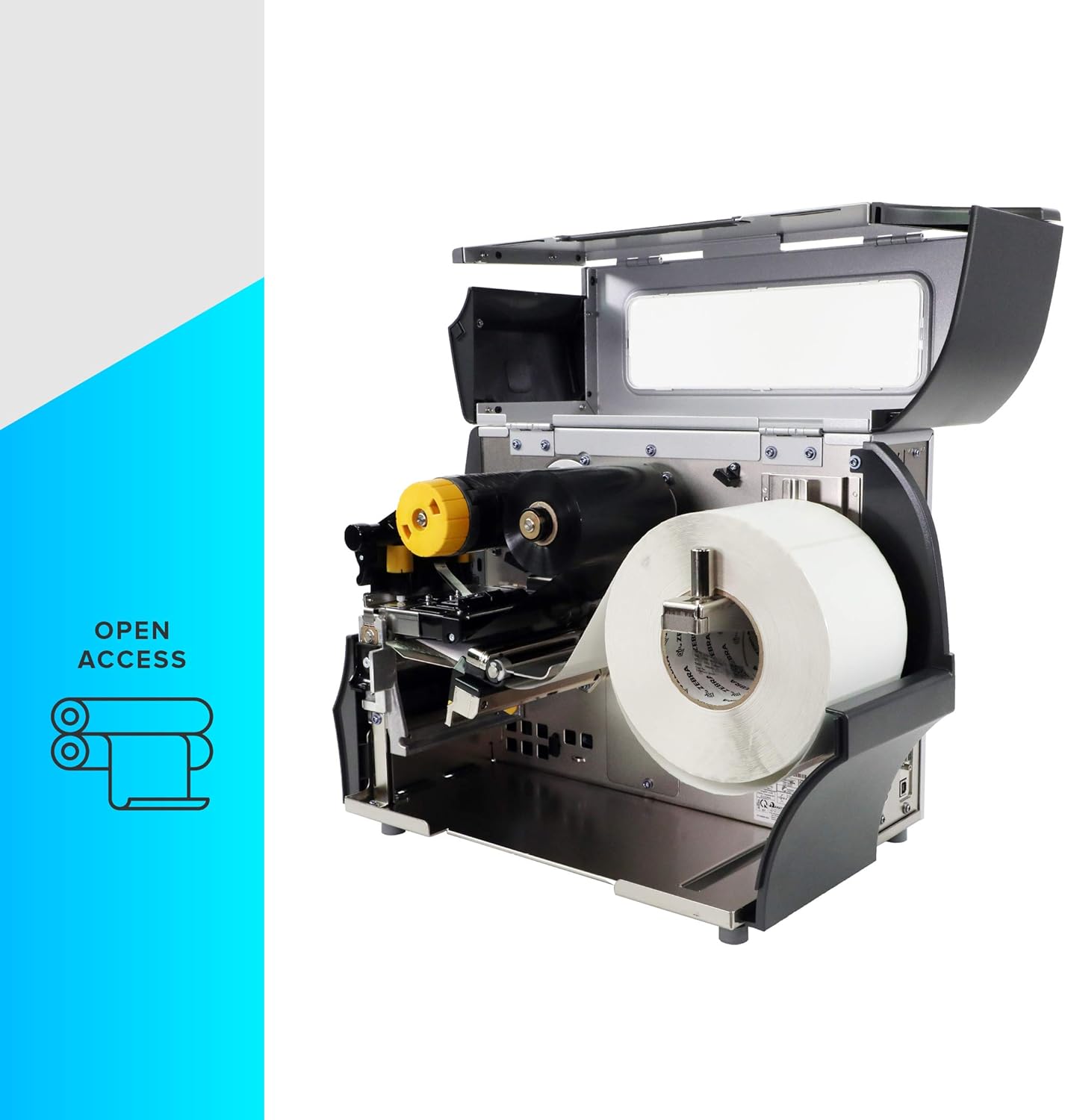

• All-metal frame and side-loading media path stand up to warehouse and production floor duty.
• Tear-off presents each label ready for immediate application with no extra finishing hardware.
• Standard USB, serial, Ethernet, Bluetooth 4.2 and dual USB host cover most integrations outright.
• Supports thermal transfer and direct thermal so label durability can be matched to the application.
• Link-OS with Print DNA provides remote configuration, monitoring and firmware management at fleet scale.
• Resident ZPL, ZPL II, EPL and EPL2 drop the printer into existing label environments unchanged.
• Optional dual-band Wi-Fi and Bluetooth 5.3 available where cabled networking is impractical.

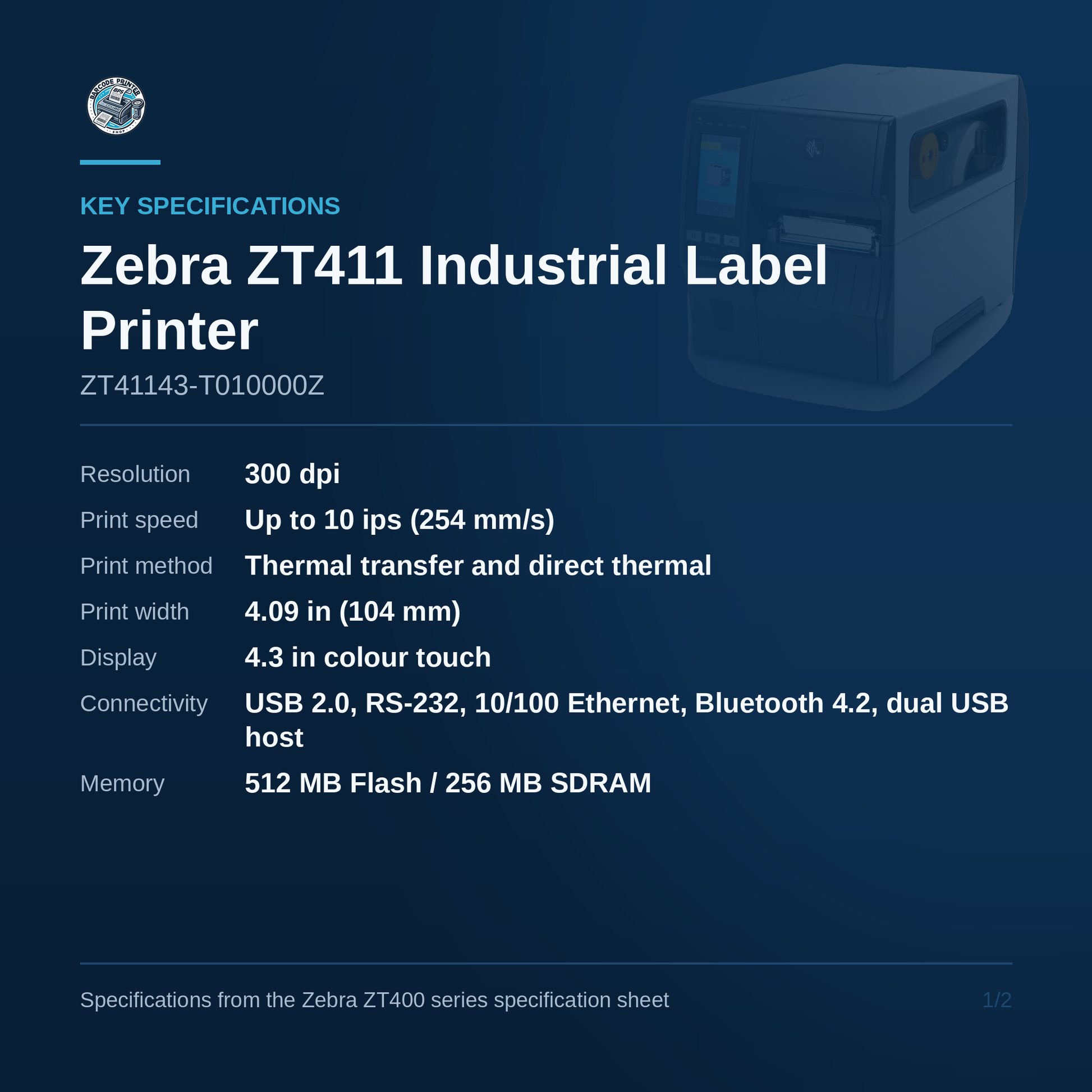

Key Specifications

• Print Resolution: 300 dpi
• Maximum Print Speed: Up to 10 ips (254 mm/s) at 300 dpi
• Print Method: Thermal transfer and direct thermal
• Maximum Print Width: 4.09 inches (104 mm)
• Media Handling: Tear-off
• Display: 4.3 inch colour touch display
• Standard Connectivity: USB 2.0 high speed, RS-232 serial, 10/100 Ethernet, Bluetooth 4.2, dual USB host
• Optional Connectivity: Dual band 802.11ax Wi-Fi with Bluetooth 5.3, or 802.11ac with Bluetooth 4.2
• Memory: 256 MB SDRAM, 512 MB on-board linear Flash
• Printer Languages: ZBI 2.0, ZPL, ZPL II, EPL and EPL2
• Dimensions: 19.5 in L x 10.6 in W x 12.75 in H
• Weight and Temperature: 36 lbs (16.33 kg); operates 40 F to 104 F (5 C to 40 C)

Industrial Build

The Zebra ZT411 (ZT41143-T010000Z) is a 4-inch industrial label printer built for continuous duty in manufacturing, warehousing, distribution and healthcare. The all-metal frame and side-loading media path are designed for floors where dust, vibration and long shifts are normal rather than exceptional, and the unit operates from 40 F to 104 F. At 36 lbs and 19.5 by 10.6 by 12.75 inches it sits on a bench or a stand without a special enclosure. The ZT411 is the direct successor to the ZT410 and keeps the same footprint, which matters when replacing units in a fixed workstation.

Print Performance

This configuration prints at 300 dpi across a maximum width of 4.09 inches (104 mm), at up to 10 ips (254 mm/s). The 300 dpi engine trades top speed for the finer dot pitch that dense two-dimensional codes, small point sizes and detailed graphics require, which is what makes it the right choice for regulated labelling and small-format asset tags. Both thermal transfer and direct thermal are supported, so label durability can be matched to how long the label has to survive rather than fixed by the hardware.

Tear-Off Media Handling

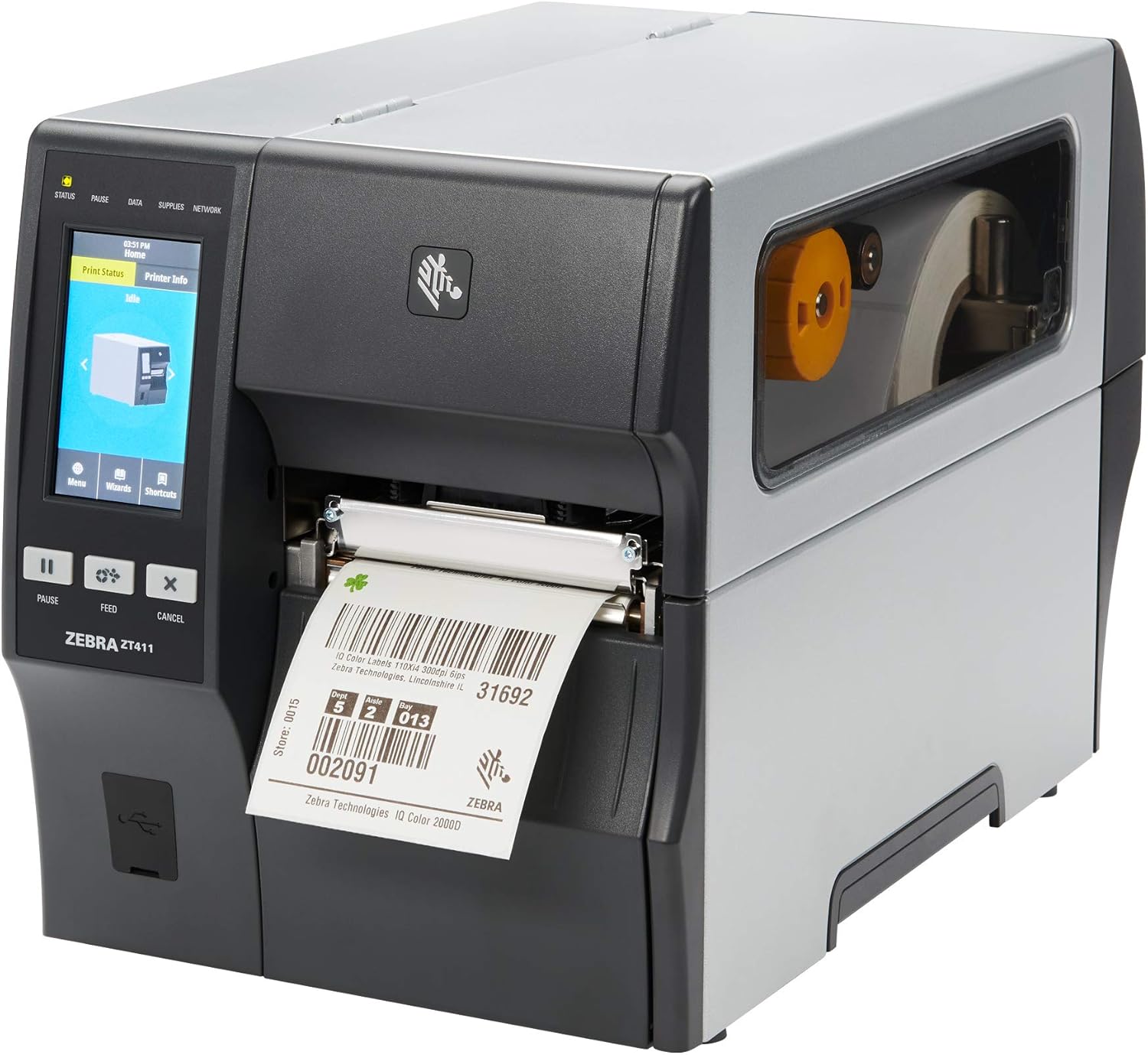

ZT41143-T010000Z is the tear-off build. Completed labels are presented at the tear bar ready for immediate application, with no cutter, peeler or rewinder in the mechanism to maintain. For most shipping, receiving and production labelling this is the right choice: it is the simplest media path, it has the fewest moving parts, and it is the least expensive build in the range. Peel, rewind, cutter and linerless options exist on the ZT411 platform but are not fitted to this part number, so if your workflow needs one of them, order the configuration that includes it.

Connectivity and Integration

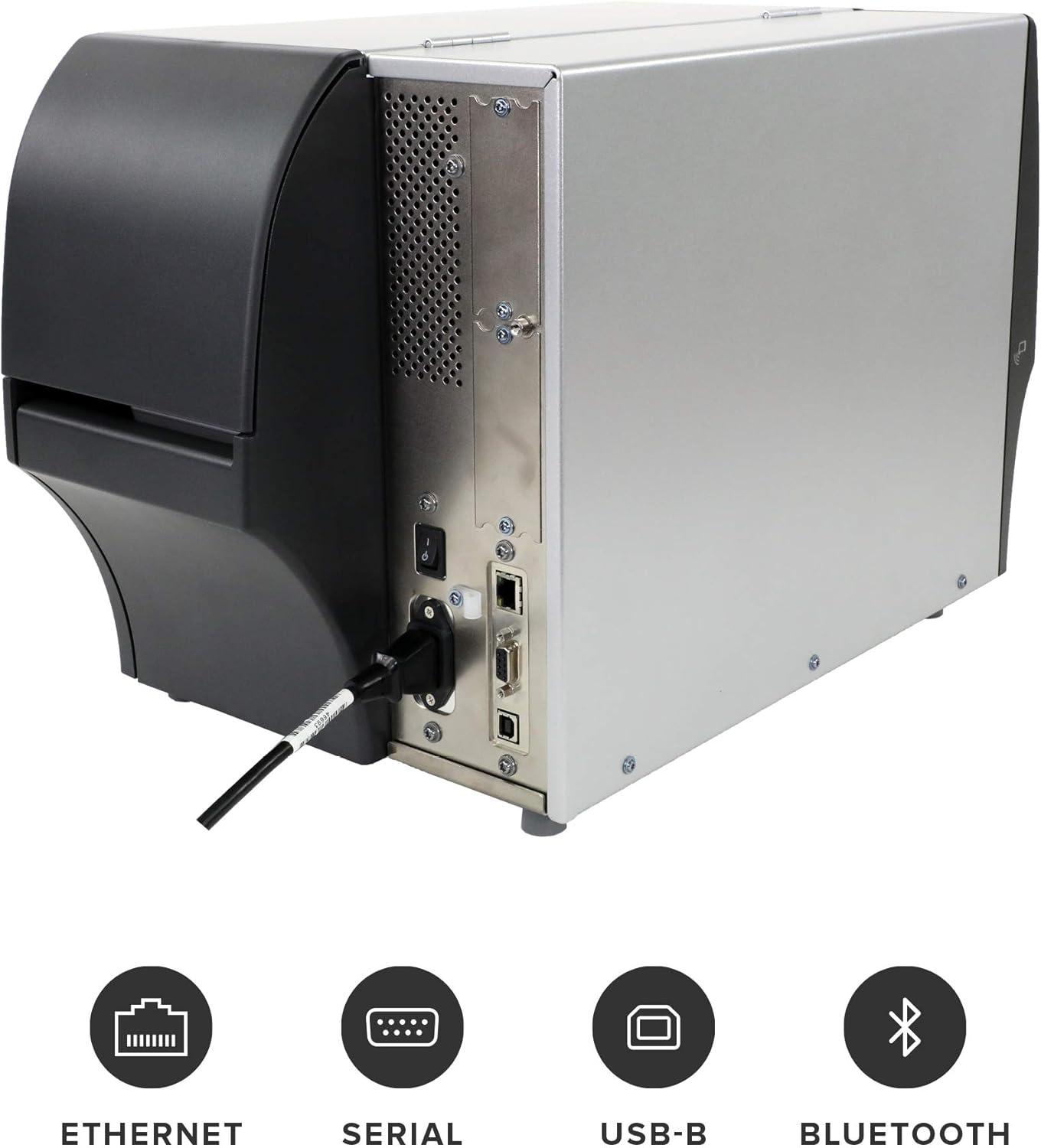

Standard connectivity is USB 2.0 high speed, RS-232 serial, 10/100 Ethernet, Bluetooth 4.2 and dual USB host ports. That set covers networked print estates, direct host connection and the legacy serial equipment still running on older lines, without an interface card. The USB host ports accept a keyboard or scanner for standalone label entry and take firmware updates from a drive. Dual-band 802.11ax Wi-Fi with Bluetooth 5.3, or 802.11ac with Bluetooth 4.2, are available as options where cabling is impractical, but are not fitted to this part number unless specified.

Link-OS and Fleet Management

The ZT411 runs Zebra Link-OS with Print DNA, giving IT and operations teams remote configuration, status monitoring, security policy and firmware management across a printer fleet. PrintSecure provides configurable security settings including connection whitelisting and certificate management where compliance requires it. Resident ZBI 2.0, ZPL, ZPL II, EPL and EPL2 mean the printer drops into an existing label environment without rewriting templates, including estates originally built around older Zebra hardware. Memory is 256 MB SDRAM and 512 MB Flash.

Operator Experience

The 4.3-inch colour touch display is the practical difference between this and an icon-driven industrial printer. Operators work through media calibration, ribbon loading, diagnostics and error recovery on screen rather than by memorising a sequence of button presses, which shortens training and reduces the number of faults that escalate to IT. In a multi-shift operation where several printer models are in service, on-screen guidance removes the dependence on one experienced operator knowing the routine for each machine. On a line where a stalled printer stops the whole operation, the minutes saved recovering from a media jam without a support call are the ones that matter.

Configuration Notes

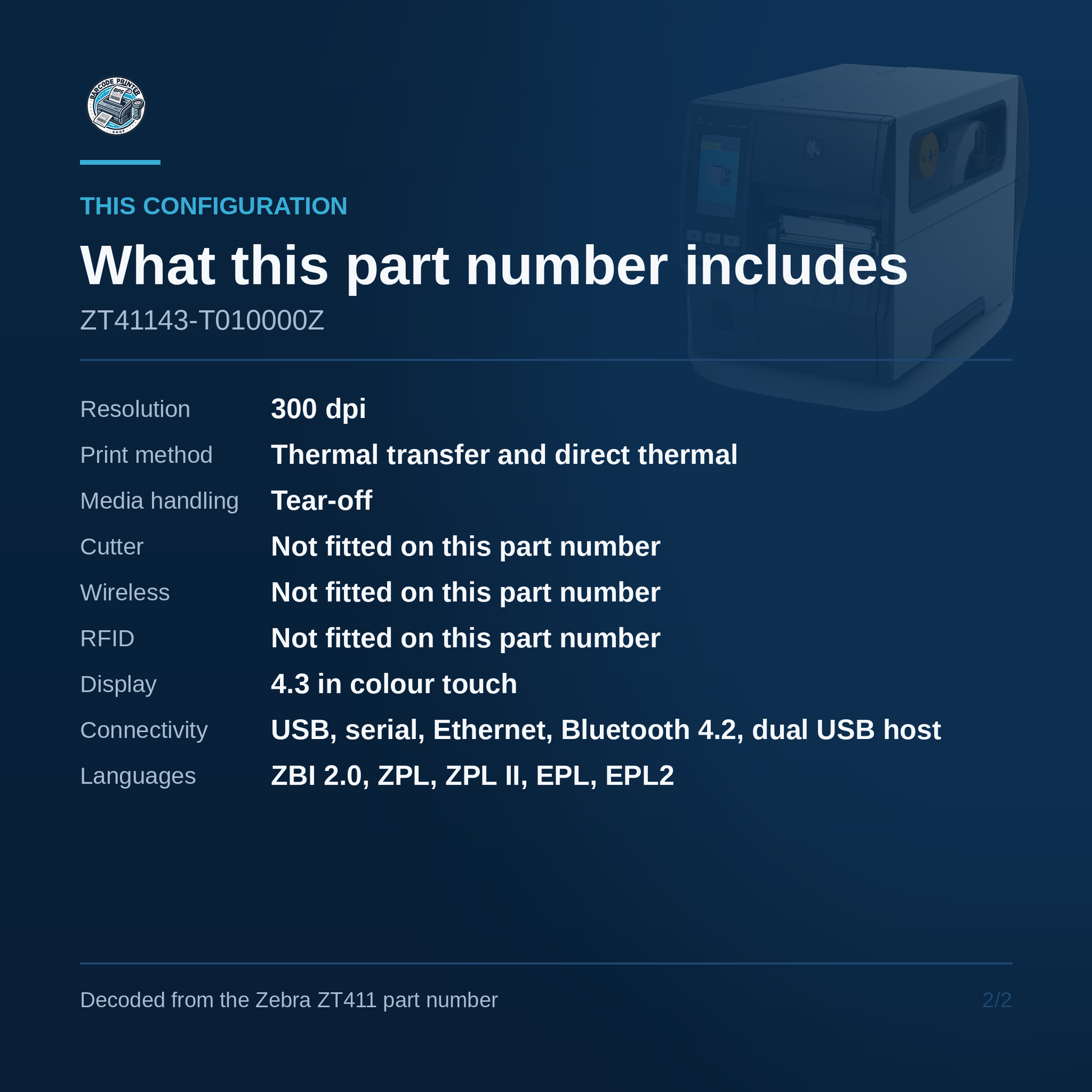

Part number ZT41143-T010000Z is the 300 dpi thermal transfer build with tear-off media handling and the standard wired interface set. ZT411 part numbers differ by resolution, media handling, connectivity and RFID capability, and none of those differences is visible from the model name alone. A printer ordered as 'a ZT411' can arrive at the wrong resolution or without the media handling a line depends on, so confirm the exact part number against the requirement before ordering, and match the part number already installed when replacing a unit.

For warehouse, manufacturing and distribution operations that need dependable 300 dpi industrial label printing with tear-off handling and a colour touch interface, the Zebra ZT411 ZT41143-T010000Z is a well-proven choice that integrates with the systems you already run. Contact us to learn more or secure this solution for your business today.
