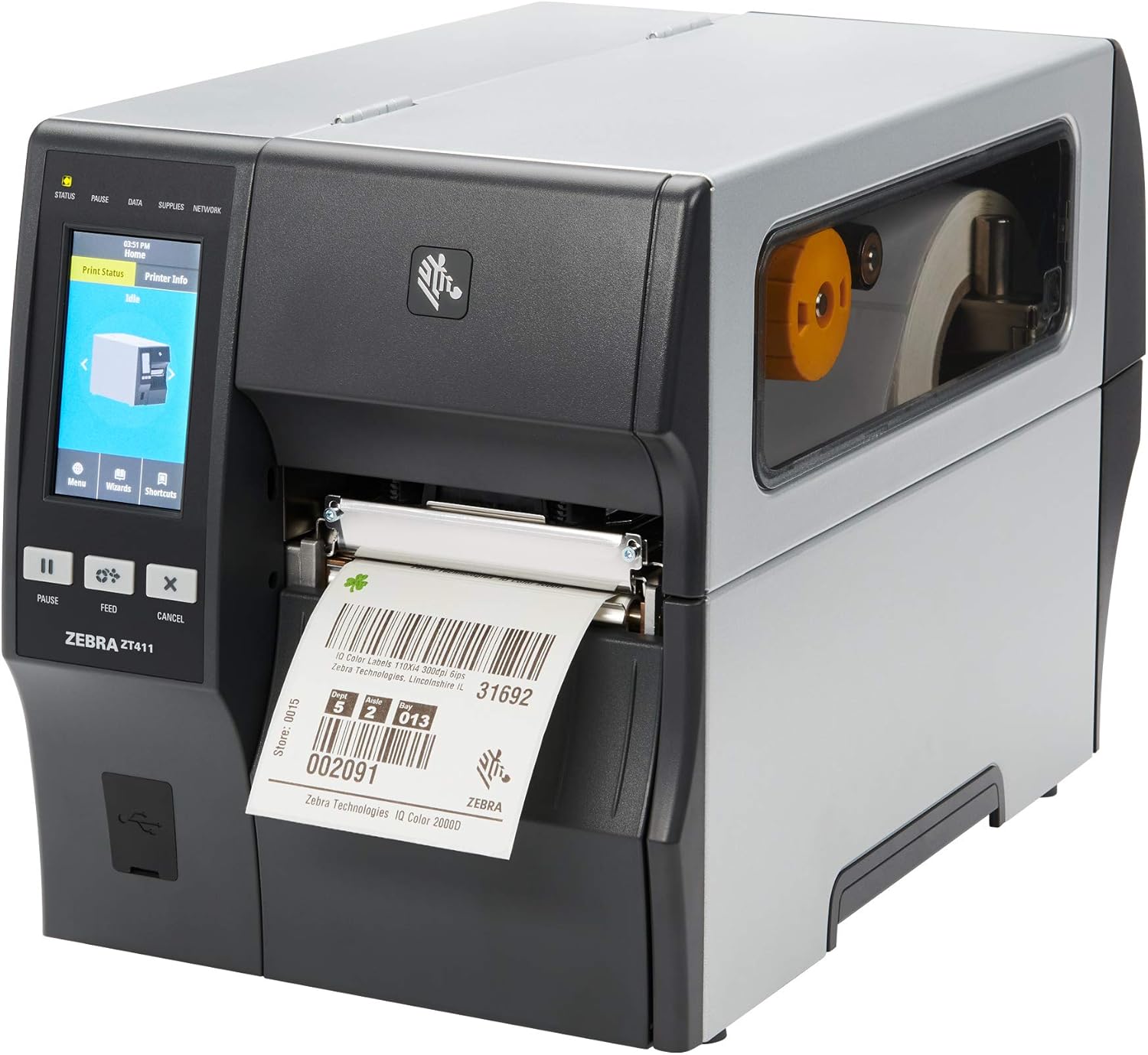

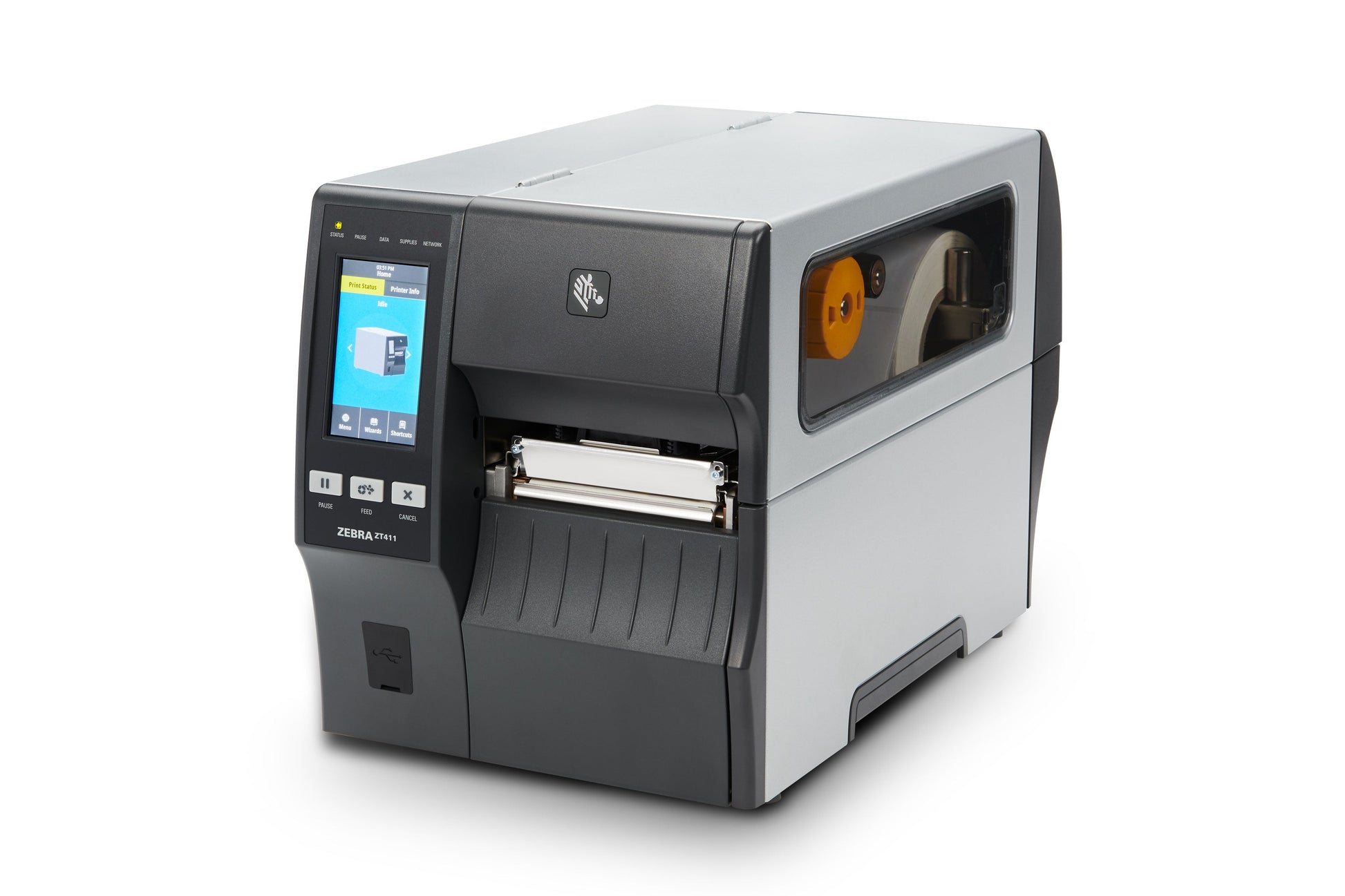

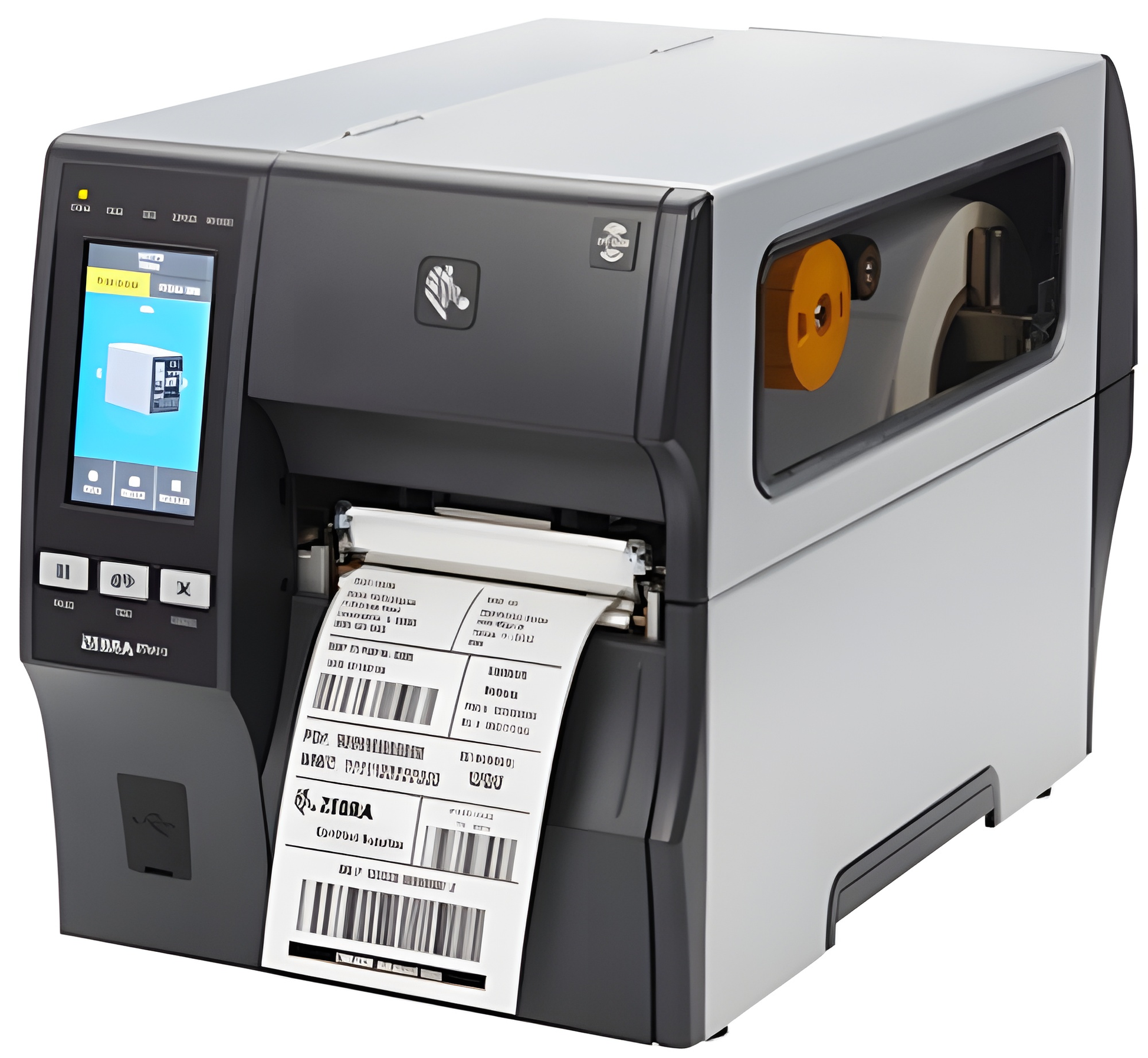

Zebra ZT411 Industrial Label Printer 203 DPI Thermal Transfer Peel Rewind Touch Display ZT41142-T410000Z

Key Features

• Prints at 203 dpi for crisp barcodes on shipping, pallet and compliance labels.
• Reaches up to 14 ips (356 mm/s) at 203 dpi, sustaining throughput on high-volume label runs.
• Prints a full 4.09 inches (104 mm) wide, covering standard 4-inch industrial label formats.
• 4.3-inch colour touch display walks operators through setup, calibration and error recovery.
• All-metal frame and side-loading media path stand up to warehouse and production floor duty.
• Peel with full rewind takes the printed roll back up internally for batch and applicator work.
• Liner take-up keeps the work area clear on peel-and-present applications at the line.
• Standard USB, serial, Ethernet, Bluetooth 4.2 and dual USB host cover most integrations outright.
• Supports thermal transfer and direct thermal so label durability can be matched to the application.
• Link-OS with Print DNA provides remote configuration, monitoring and firmware management at fleet scale.
• Resident ZPL, ZPL II, EPL and EPL2 drop the printer into existing label environments unchanged.
• Optional dual-band Wi-Fi and Bluetooth 5.3 available where cabled networking is impractical.

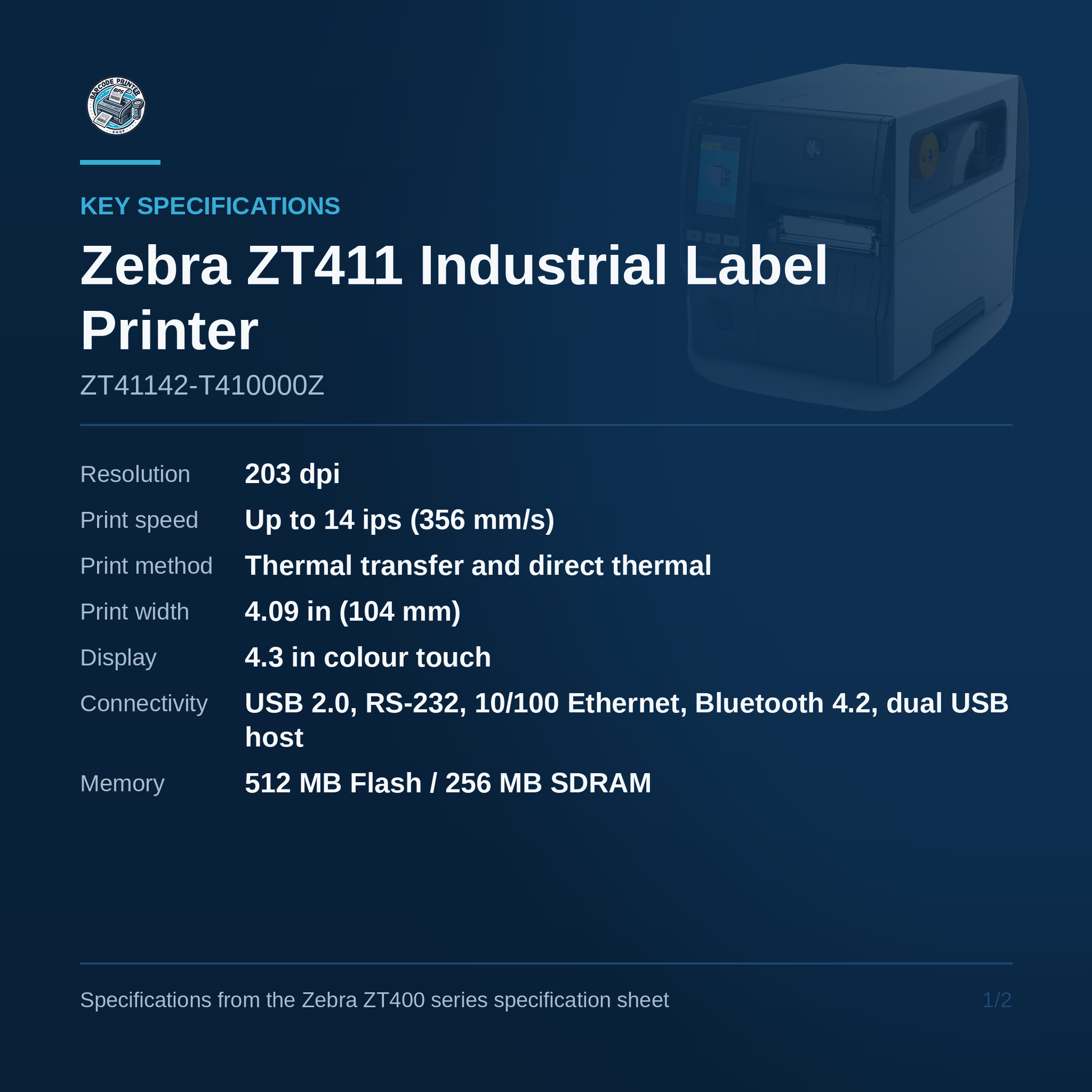

Key Specifications

• Print Resolution: 203 dpi
• Maximum Print Speed: Up to 14 ips (356 mm/s) at 203 dpi
• Print Method: Thermal transfer and direct thermal
• Maximum Print Width: 4.09 inches (104 mm)
• Media Handling: Peel with full rewind
• Display: 4.3 inch colour touch display
• Standard Connectivity: USB 2.0 high speed, RS-232 serial, 10/100 Ethernet, Bluetooth 4.2, dual USB host
• Optional Connectivity: Dual band 802.11ax Wi-Fi with Bluetooth 5.3, or 802.11ac with Bluetooth 4.2
• Memory: 256 MB SDRAM, 512 MB on-board linear Flash
• Printer Languages: ZBI 2.0, ZPL, ZPL II, EPL and EPL2
• Dimensions: 19.5 in L x 10.6 in W x 12.75 in H
• Weight and Temperature: 36 lbs (16.33 kg); operates 40 F to 104 F (5 C to 40 C)

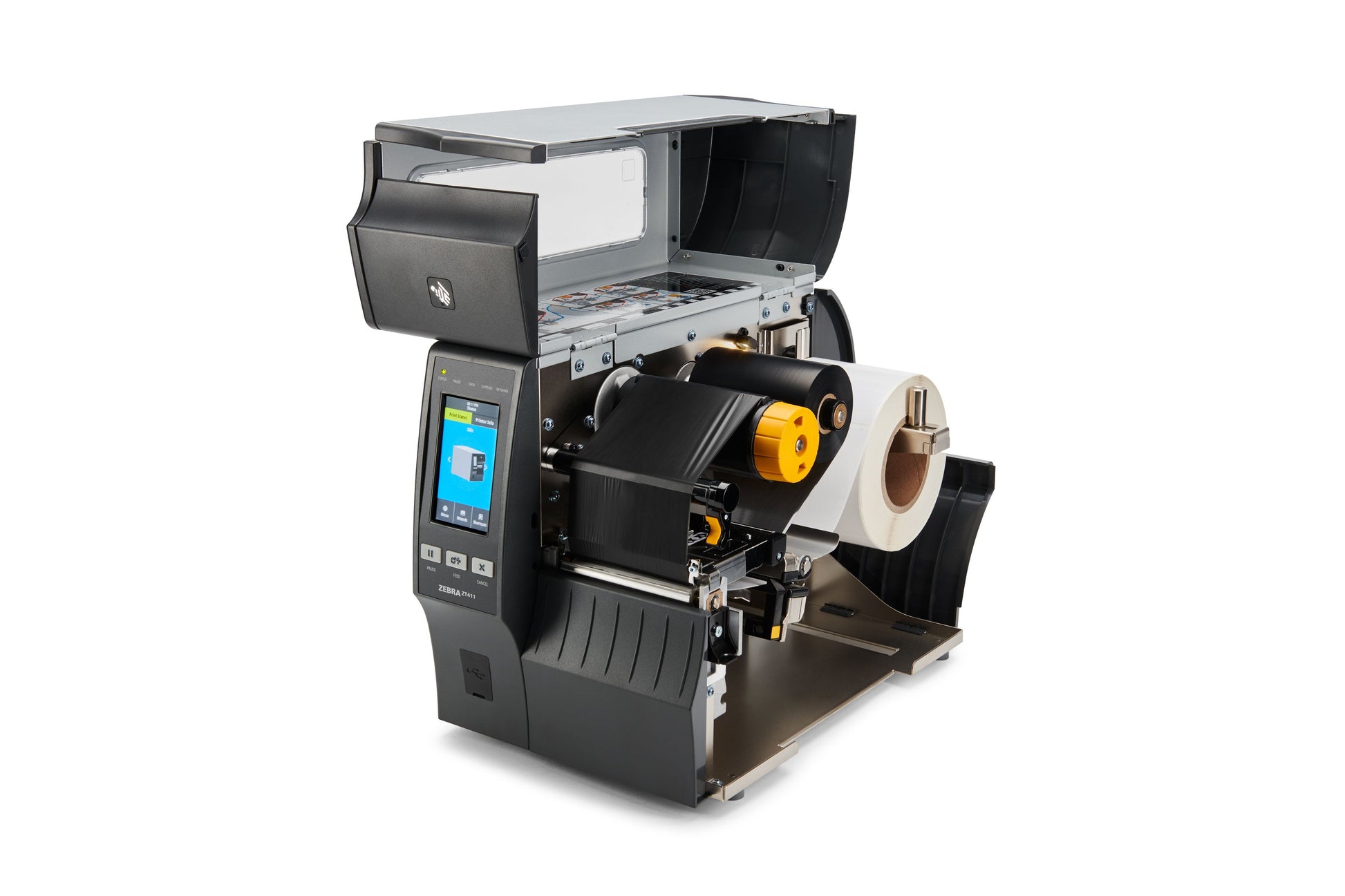

Industrial Build

The Zebra ZT411 (ZT41142-T410000Z) is a 4-inch industrial label printer built for continuous duty in manufacturing, warehousing, distribution and healthcare. The all-metal frame and side-loading media path are designed for floors where dust, vibration and long shifts are normal rather than exceptional, and the unit operates from 40 F to 104 F. At 36 lbs and 19.5 by 10.6 by 12.75 inches it sits on a bench or a stand without a special enclosure. The ZT411 is the direct successor to the ZT410 and keeps the same footprint, which matters when replacing units in a fixed workstation.

Print Performance

This configuration prints at 203 dpi across a maximum width of 4.09 inches (104 mm), at up to 14 ips (356 mm/s). At 203 dpi this is the fastest configuration in the range, which suits high-volume shipping, carton and pallet labelling where throughput matters more than dot pitch. It is also the resolution most compliance label formats are designed around, so it is the safe default unless a specific symbology or a small label demands finer detail. Both thermal transfer and direct thermal are supported, so label durability can be matched to how long the label has to survive rather than fixed by the hardware.

Peel and Full Rewind

ZT41142-T410000Z is the peel with full rewind build. The printer separates each label from its liner and takes the liner up internally, so an operator can lift labels one at a time without a growing tail of backing paper across the bench. The full rewind option also lets a complete printed roll be wound back up inside the printer for batch pre-printing, which suits applications feeding an automatic applicator or where labels are printed in one place and applied in another. This is the configuration to choose for print-and-apply lines and unattended batch runs.

Connectivity and Integration

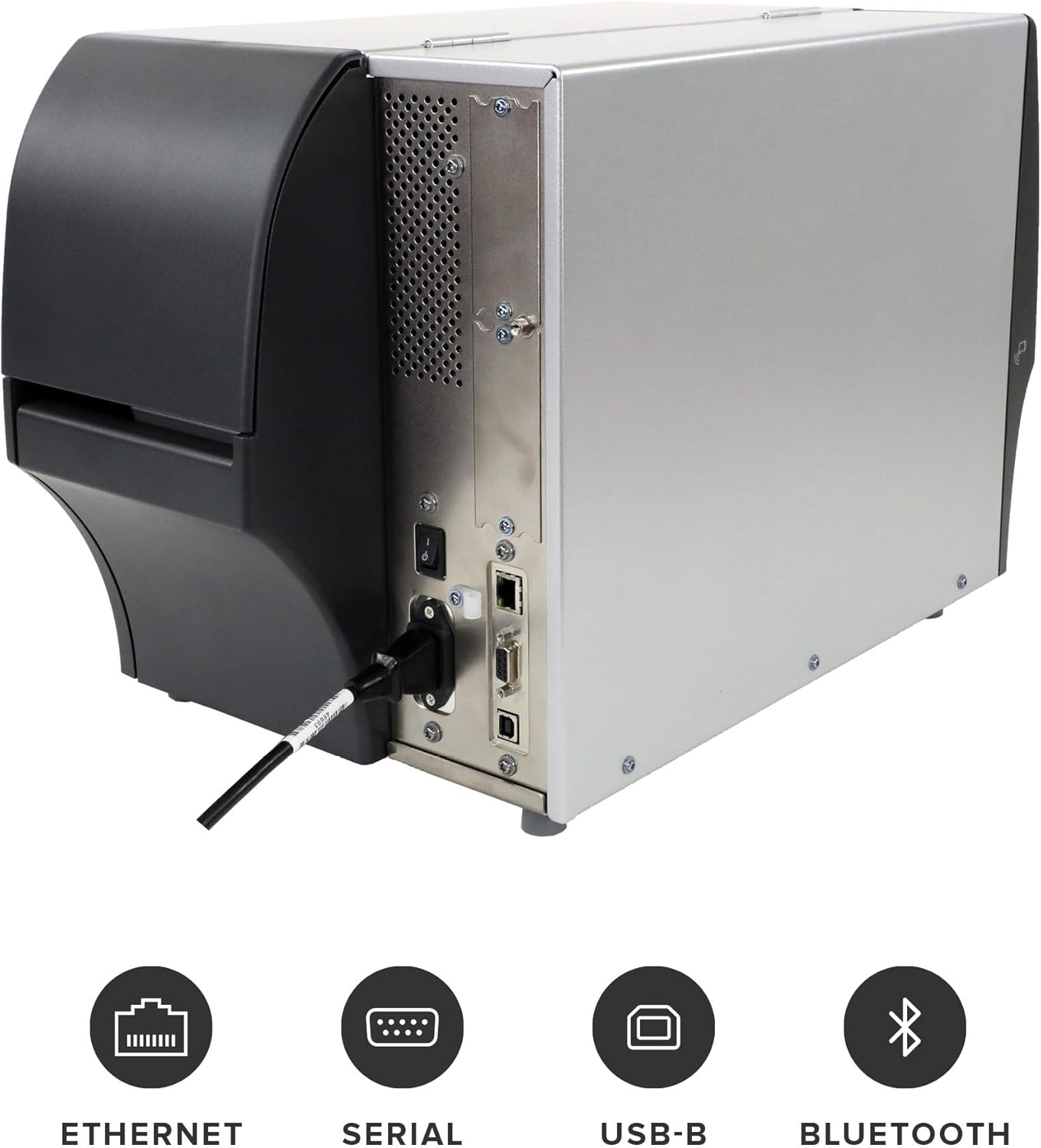

Standard connectivity is USB 2.0 high speed, RS-232 serial, 10/100 Ethernet, Bluetooth 4.2 and dual USB host ports. That set covers networked print estates, direct host connection and the legacy serial equipment still running on older lines, without an interface card. The USB host ports accept a keyboard or scanner for standalone label entry and take firmware updates from a drive. Dual-band 802.11ax Wi-Fi with Bluetooth 5.3, or 802.11ac with Bluetooth 4.2, are available as options where cabling is impractical, but are not fitted to this part number unless specified.

Link-OS and Fleet Management

The ZT411 runs Zebra Link-OS with Print DNA, giving IT and operations teams remote configuration, status monitoring, security policy and firmware management across a printer fleet. PrintSecure provides configurable security settings including connection whitelisting and certificate management where compliance requires it. Resident ZBI 2.0, ZPL, ZPL II, EPL and EPL2 mean the printer drops into an existing label environment without rewriting templates, including estates originally built around older Zebra hardware. Memory is 256 MB SDRAM and 512 MB Flash.

Operator Experience

The 4.3-inch colour touch display is the practical difference between this and an icon-driven industrial printer. Operators work through media calibration, ribbon loading, diagnostics and error recovery on screen rather than by memorising a sequence of button presses, which shortens training and reduces the number of faults that escalate to IT. In a multi-shift operation where several printer models are in service, on-screen guidance removes the dependence on one experienced operator knowing the routine for each machine. On a line where a stalled printer stops the whole operation, the minutes saved recovering from a media jam without a support call are the ones that matter.

Configuration Notes

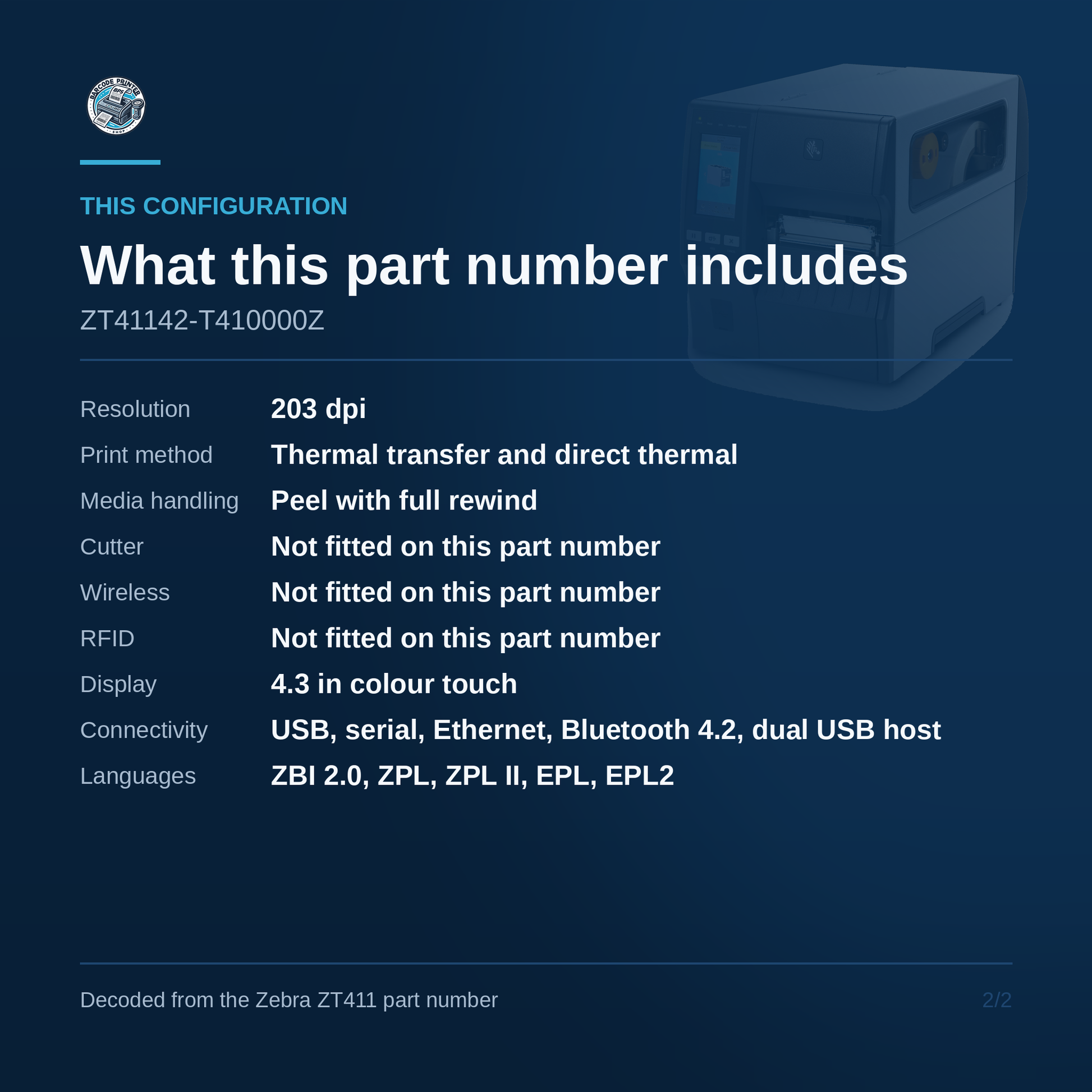

Part number ZT41142-T410000Z is the 203 dpi thermal transfer build with peel with full rewind media handling and the standard wired interface set. ZT411 part numbers differ by resolution, media handling, connectivity and RFID capability, and none of those differences is visible from the model name alone. A printer ordered as 'a ZT411' can arrive at the wrong resolution or without the media handling a line depends on, so confirm the exact part number against the requirement before ordering, and match the part number already installed when replacing a unit.

For warehouse, manufacturing and distribution operations that need dependable 203 dpi industrial label printing with peel with full rewind handling and a colour touch interface, the Zebra ZT411 ZT41142-T410000Z is a well-proven choice that integrates with the systems you already run. Contact us to learn more or secure this solution for your business today.
