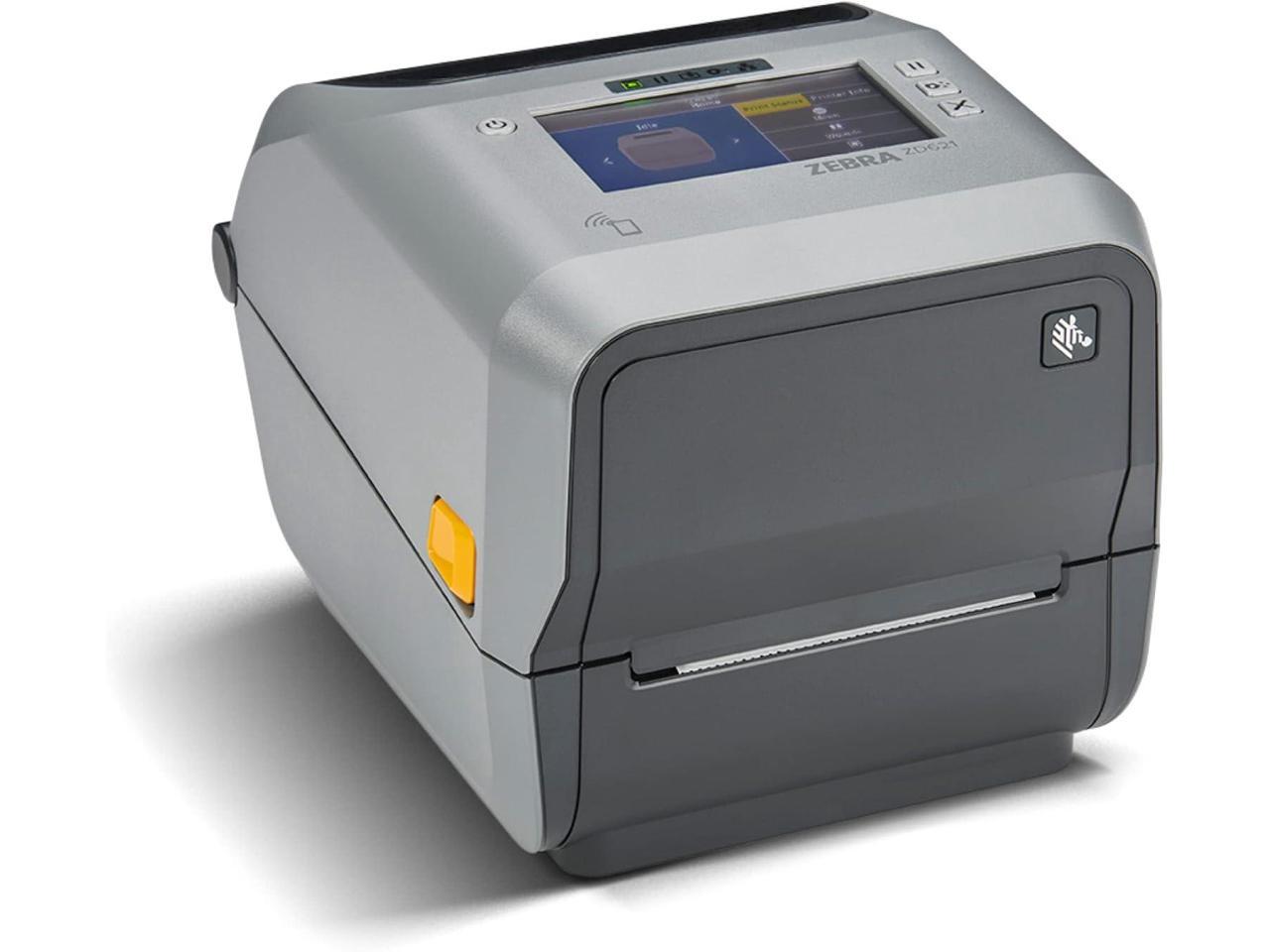

Zebra ZD621 Desktop Thermal Transfer Label Printer 300 DPI Colour Touch Display ZD6A143-301F00EZ

Key Features

• Prints at 300 dpi, resolving dense two-dimensional codes, small point sizes and fine graphic detail.
• Reaches up to 6 ips (152 mm/s) at 300 dpi, with a maximum print width of 4.27 inches (108 mm).
• Thermal transfer with a ribbon roll, and direct thermal as well, so label life is set by the media.
• 4.3-inch full-colour touch display walks operators through loading, calibration and error recovery.
• Ethernet 10/100 and RS-232 serial are both standard, alongside USB 2.0 and a USB host port.
• Tear bar fitted as standard; a dispenser or peeler and a cutter are available as options.
• Real-time clock timestamps labels for date-coded, batch and expiry applications without host input.
• Dual-wall frame and OpenACCESS clamshell design stand up to continuous use and fast media changes.
• Bluetooth Low Energy pairing lets setup and configuration run from a phone or tablet app.
• Resident ZPL II, EPL 2, XML, ZBI and PDF Direct drop the printer into existing label workflows.
• Link-OS provides remote configuration, monitoring and firmware management across a printer fleet.
• ENERGY STAR certified, with an operating range of 40 to 105 degrees Fahrenheit.

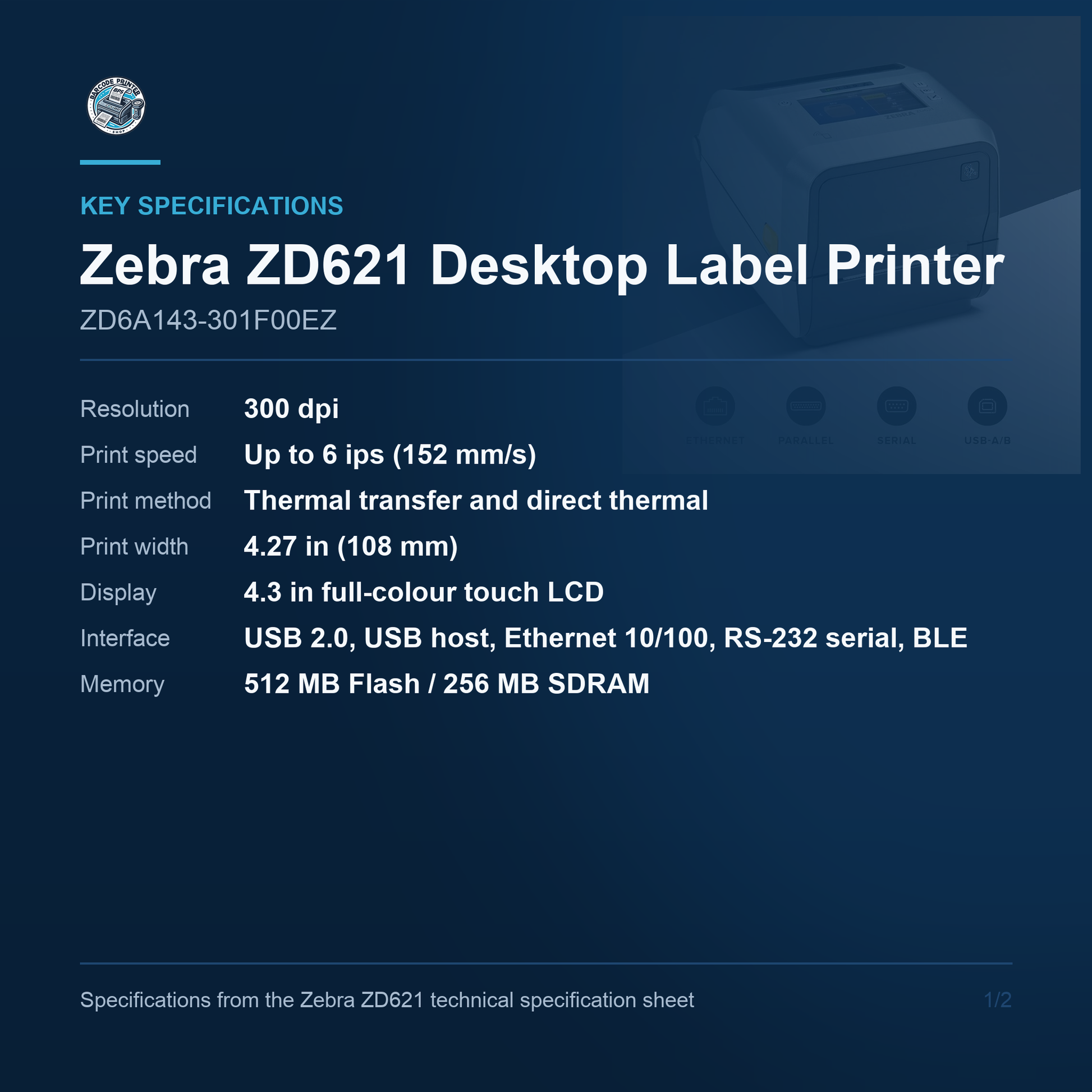

Key Specifications

• Print Resolution: 300 dpi
• Maximum Print Speed: Up to 6 ips (152 mm/s) at 300 dpi
• Print Method: Thermal transfer with ribbon roll, and direct thermal
• Maximum Print Width: 4.27 inches (108 mm)
• Media Handling: Tear bar; dispenser or peeler and cutter available as options
• Display: 4.3 inch full-colour touch LCD, 480 x 272, with three-button interface
• Standard Connectivity: USB 2.0, USB host, Ethernet 10/100, RS-232 serial, Bluetooth Low Energy 5.0
• Optional Connectivity: Dual-band Wi-Fi 6 with Bluetooth 5.3, or Wi-Fi 5 with Bluetooth 4.2
• Memory: 512 MB Flash and 256 MB SDRAM
• Printer Languages: ZPL II, EPL 2, XML, ZBI and PDF Direct
• Media: Roll up to 5.0 in outer diameter on 0.5 in or 1.0 in cores
• Dimensions and Weight: 10.5 in L x 8.0 in W x 7.5 in H; 5.5 lbs (2.5 kg)

Desktop Build

The Zebra ZD621 (ZD6A143-301F00EZ) is the higher-specified of Zebra's two four-inch desktop platforms, built for a counter, packing bench or laboratory station that runs continuously. Dual-wall frame construction and the OpenACCESS clamshell let an operator drop in a fresh roll in seconds without threading media through a fixed path. It takes rolls up to 5.0 inches in outer diameter on 0.5-inch or 1.0-inch cores, with adapters available for larger cores. This thermal transfer configuration measures 10.5 by 8.0 by 7.5 inches and weighs 5.5 lbs, and the printer is ENERGY STAR certified with a rated operating range of 40 to 105 degrees Fahrenheit.

Print Performance

This part number prints at 300 dpi across a maximum width of 4.27 inches (108 mm), at speeds up to 6 ips (152 mm/s). Zebra's headline figure of 8 ips for the ZD621 is the 203 dpi number and does not apply here; at 300 dpi the maximum is 6 ips, and the finer dot pitch is the reason to choose this build. Dense two-dimensional codes, small point sizes and detailed graphics resolve cleanly at 300 dpi where they would break up at 203. Thermal transfer with a ribbon roll is fitted, and the printer also runs direct thermal, so how long the finished label survives is a media decision rather than a hardware limit.

Colour Touch Display

ZD6A143-301F00EZ is fitted with the 4.3-inch full-colour touch LCD, and that is the practical difference between it and an icon-panel desktop printer. Operators work through media calibration, ribbon loading, diagnostics and error recovery on screen rather than by memorising button sequences, which shortens training and cuts the number of faults that escalate to IT. In a multi-shift operation running several printer models, on-screen guidance removes the dependence on one experienced operator knowing the routine for each machine. The display is standard on this part number, not an accessory to order separately.

Connectivity

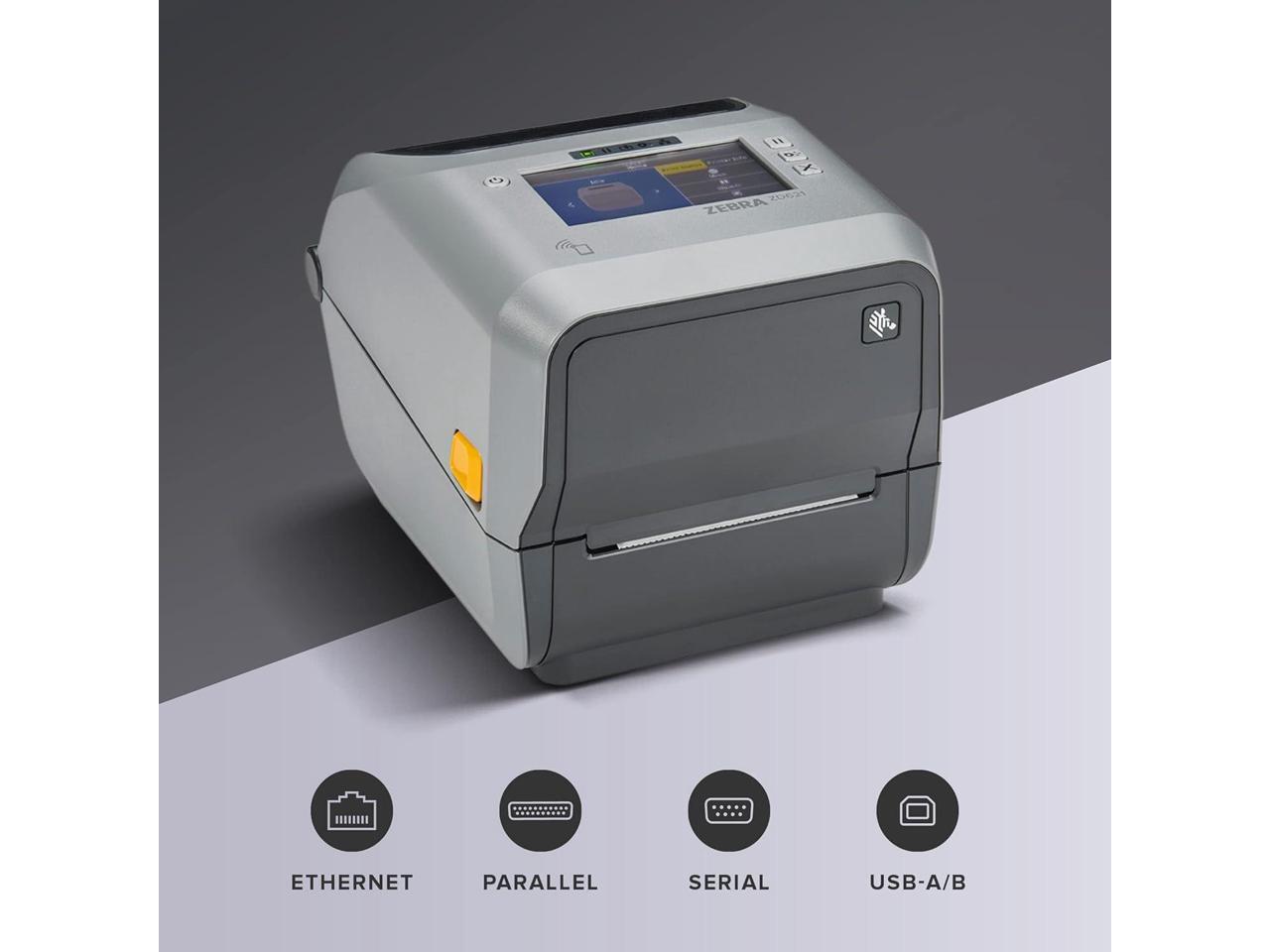

Unlike the ZD421, the ZD621 has Ethernet 10/100 and RS-232 serial as standard alongside USB 2.0 and a USB host port, so ZD6A143-301F00EZ joins a network and talks to legacy serial equipment without an interface card or a modular slot decision. Bluetooth Low Energy handles setup and configuration from a phone or tablet, and the USB host port accepts a keyboard or scanner for standalone label entry as well as firmware updates from a drive. Dual-band Wi-Fi 6 with Bluetooth 5.3, and Wi-Fi 5 with Bluetooth 4.2, are available as factory or field options, but no radio is fitted on this part number.

Link-OS and Languages

The ZD621 runs Zebra Link-OS, giving IT and operations teams remote configuration, status monitoring, security policy and firmware management across a fleet rather than one machine at a time. Resident ZPL II, EPL 2, XML, ZBI and PDF Direct mean the printer drops into an existing label environment without rewriting templates, including estates originally built around older Zebra desktop hardware, and PDF Direct lets a host send a PDF straight to the printer. Memory is 512 MB Flash and 256 MB SDRAM, and a real-time clock is fitted so date, batch and expiry fields can be stamped without the host supplying them.

Media Handling Options

A tear bar is fitted as standard on ZD6A143-301F00EZ, presenting each finished label ready to lift and apply with nothing else in the mechanism to maintain. A dispenser or peeler with a label-present sensor and a cutter are both available on the ZD621 platform, as factory-fitted or field-installable options depending on the part number, so a workflow that later needs peel-and-present or cut labels can be upgraded without replacing the printer. Neither is fitted here, so order the option separately if the application requires it. Media handling is one of the positions that varies across ZD621 part numbers.

Configuration Notes

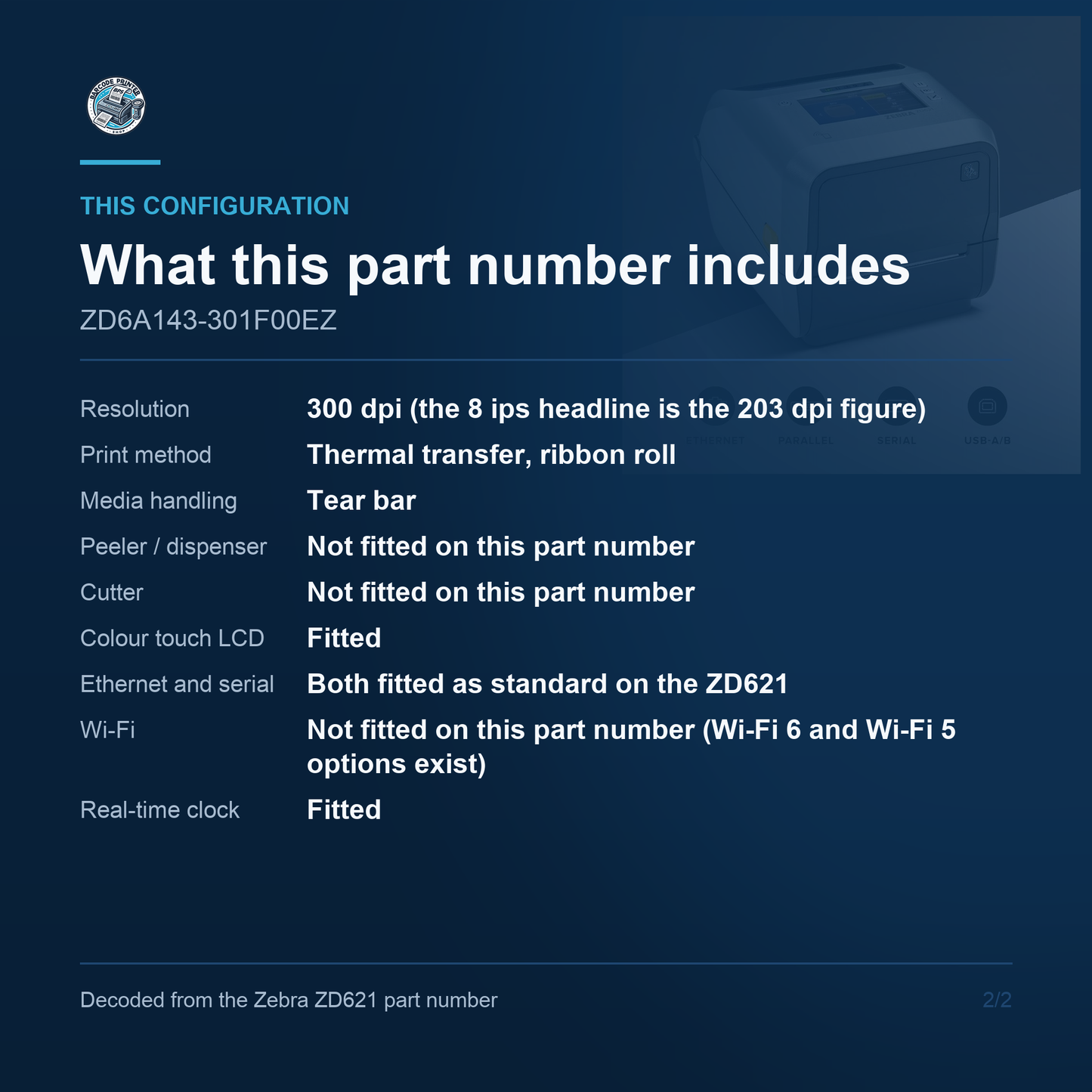

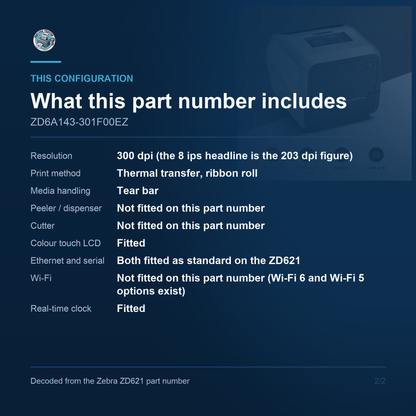

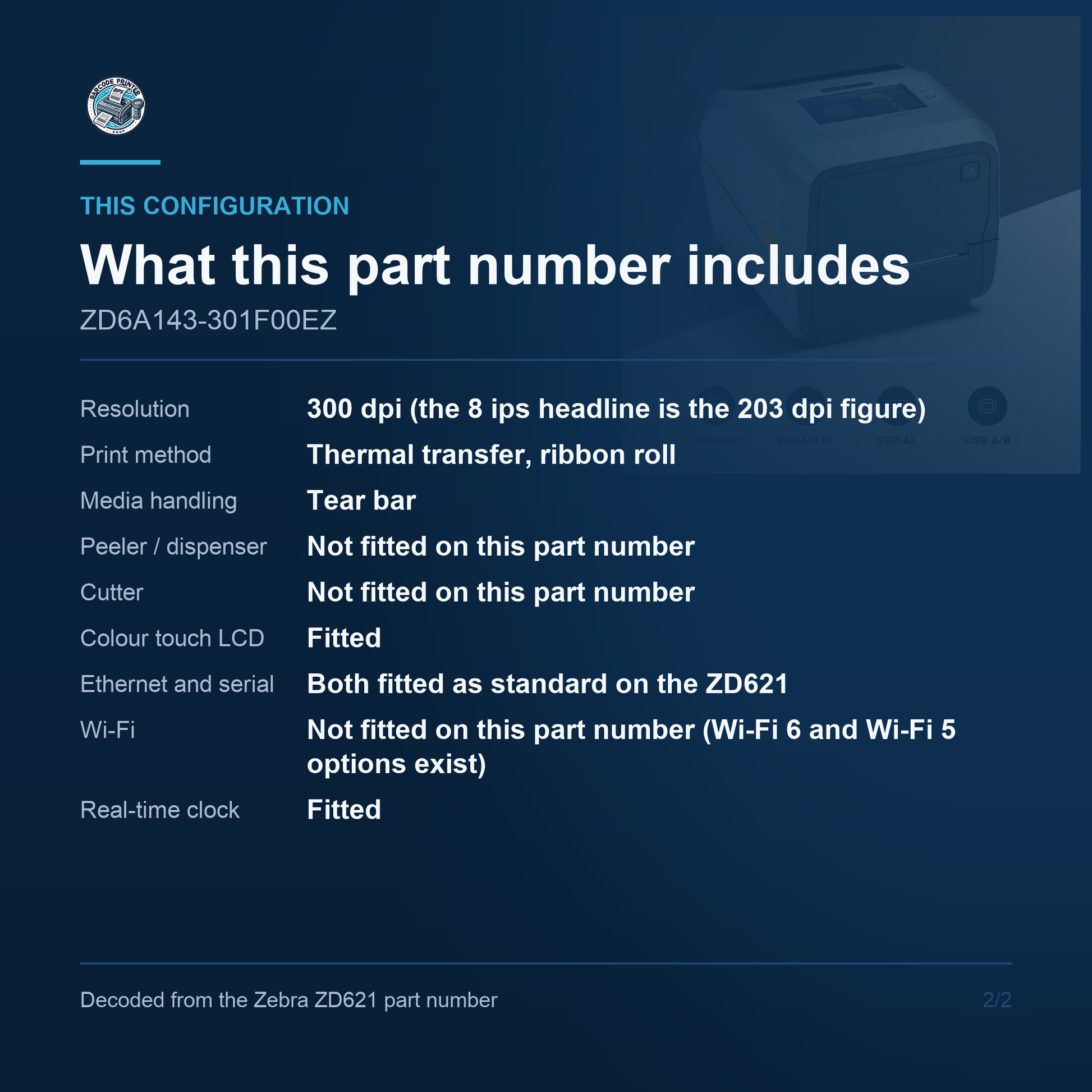

Part number ZD6A143-301F00EZ is the 300 dpi thermal transfer build with the colour touch display, tear-bar media handling and the standard wired interface set of Ethernet, serial, USB and USB host. ZD621 part numbers differ by resolution, print method, display, media handling and radio, and none of those differences is visible from the model name on the box. A printer ordered simply as 'a ZD621' can arrive at the wrong resolution or without the touch display an operation trained around, so confirm the exact part number before ordering and match the part number already installed when replacing a unit in service.
