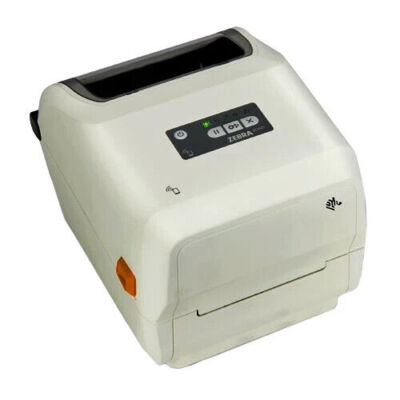

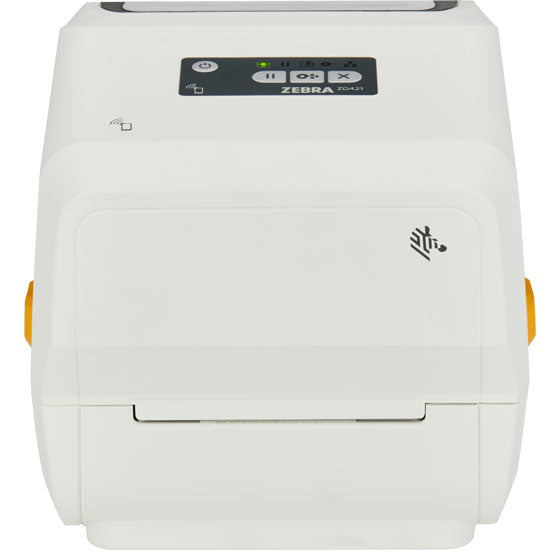

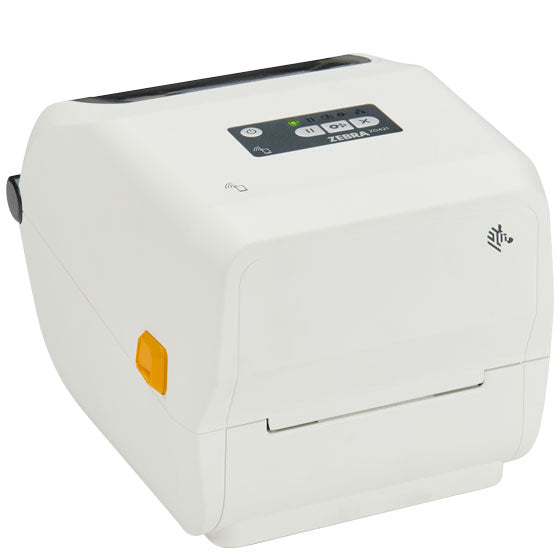

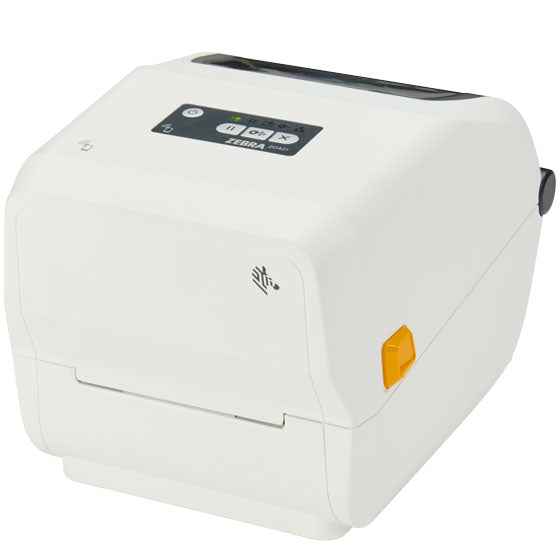

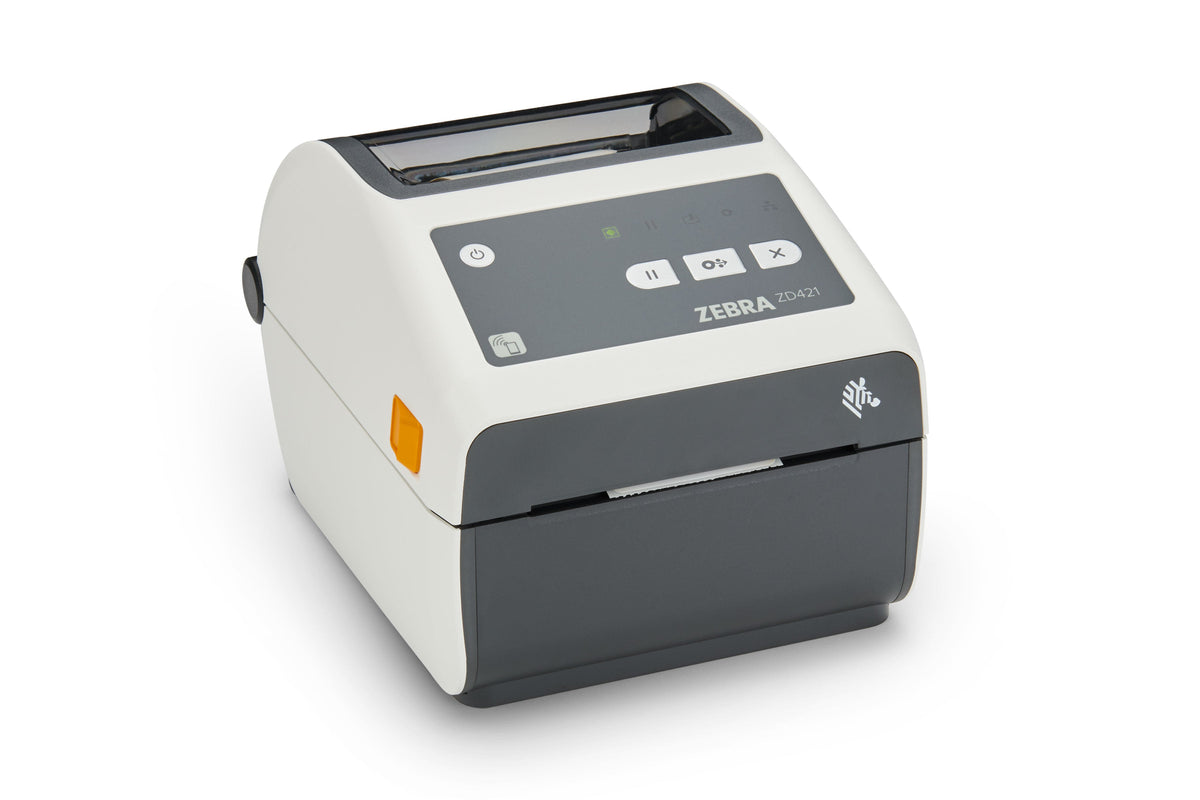

Zebra ZD421-HC Healthcare Desktop Thermal Transfer Label Printer 203 DPI USB Ethernet ZD4AH42-301E00EZ

Key Features

• Prints at 203 dpi, the standard resolution most shipping, carton and compliance label formats are built around.
• Reaches up to 6 ips (152 mm/s) at 203 dpi, with a maximum print width of 4.09 inches (104 mm).
• Thermal transfer with a ribbon roll, and direct thermal as well, so label life is set by the media rather than the hardware.
• Tear bar fitted as standard; a dispenser or peeler and a cutter are field-installable later.
• Disinfectant-ready plastics and a sealed button interface stand up to repeated wipe-down cleaning.
• UV-resistant housing supports ultraviolet cleaning protocols used in clinical settings.
• Healthcare-compliant power supply certified to IEC 60601-1 for use near patients.
• Healthcare-preferred white housing matches the equipment already deployed on the ward.
• Ethernet 10/100 is fitted, so the printer joins the network without an interface card.
• Bluetooth Low Energy and Print Touch tap-to-pair speed up setup from a phone or tablet.
• Resident ZPL II, EPL 2, XML, ZBI and PDF Direct drop the printer into existing label workflows.
• Link-OS provides remote configuration, monitoring and firmware management across a printer fleet.

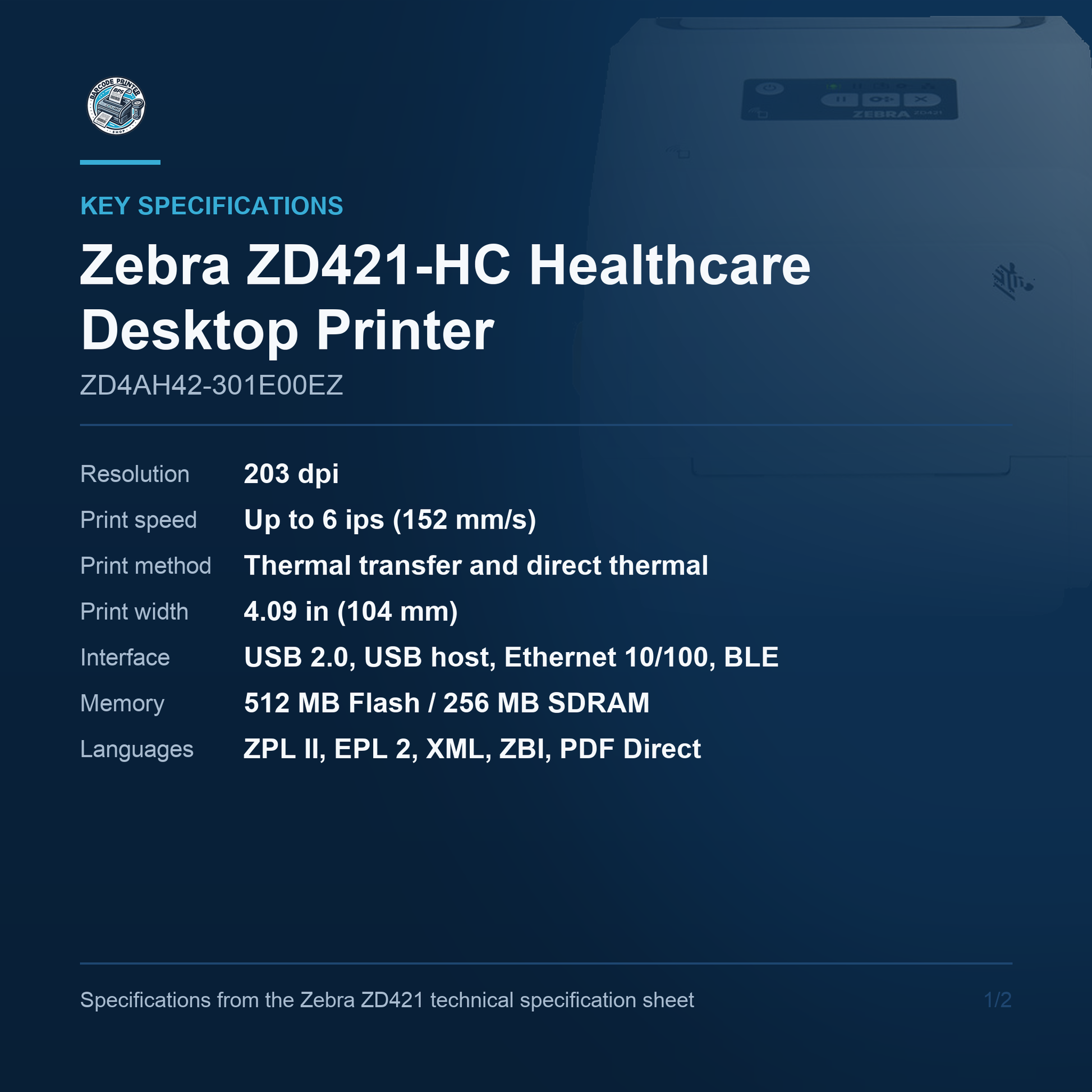

Key Specifications

• Print Resolution: 203 dpi
• Maximum Print Speed: Up to 6 ips (152 mm/s) at 203 dpi
• Print Method: Thermal transfer with ribbon roll, and direct thermal
• Maximum Print Width: 4.09 inches (104 mm)
• Media Handling: Tear bar; dispenser or peeler and cutter available as field-installable options
• Standard Connectivity: USB 2.0, USB host, Ethernet 10/100, Bluetooth Low Energy 5.0
• Modular Connectivity Slot: Used by the fitted Ethernet interface on this part number
• Operator Interface: Five status icons and three buttons; the ZD421 platform has no LCD
• Memory: 512 MB Flash and 256 MB SDRAM
• Printer Languages: ZPL II, EPL 2, XML, ZBI and PDF Direct
• Media: Width 0.585 to 4.41 in; roll up to 5.0 in outer diameter on 0.5 in or 1.0 in cores
• Dimensions and Weight: 10.5 in L x 8.0 in W x 7.44 in H; 4.52 lbs (2.05 kg)

Desktop Build

The Zebra ZD421 (ZD4AH42-301E00EZ) is a four-inch desktop label printer designed to sit on a counter, a packing bench or a shelf and run all day without special handling. The OpenACCESS clamshell opens fully so an operator can drop in a new roll in seconds rather than threading media through a fixed path. It takes rolls up to 5.0 inches in outer diameter on 0.5-inch or 1.0-inch cores, with optional adapters for 1.5-inch, 2.0-inch and 3.0-inch cores, and handles media from 0.585 to 4.41 inches wide. Rated operating range is 40 to 105 degrees Fahrenheit, which covers a warehouse packing station as readily as an office. This configuration measures 10.5 by 8.0 by 7.44 inches and weighs 4.52 lbs.

Print Performance

This part number prints at 203 dpi across a maximum width of 4.09 inches (104 mm), at speeds up to 6 ips (152 mm/s). At 203 dpi this is the faster of the two resolutions in the range, and it is the resolution most shipping, receiving and compliance label formats were designed around. Unless a specific symbology or a small-format label calls for a finer dot pitch, 203 dpi is the practical default. Thermal transfer with a ribbon roll is fitted here, and the printer also runs direct thermal, so the durability of the finished label is a media decision rather than a hardware one.

Healthcare Configuration

ZD4AH42-301E00EZ is the ZD421-HC healthcare build, and the differences are physical rather than a badge on the box. The housing is moulded in disinfectant-ready plastics with a sealed button interface, so it survives the repeated wipe-downs a clinical cleaning schedule demands instead of clouding and cracking. The plastics are UV resistant, which matters where ultraviolet cleaning protocols are in use. The power supply is certified to IEC 60601-1 for medical electrical equipment, and the white housing matches the equipment already deployed on a ward. Print performance is identical to the standard ZD421 at this resolution.

Connectivity

ZD4AH42-301E00EZ ships with USB 2.0, a USB host port and Ethernet 10/100 fitted, plus Bluetooth Low Energy for setup from the Zebra Printer Setup Utility on a phone or tablet, and Print Touch tap-to-pair. Ethernet occupies the modular connectivity slot on this configuration, which means the printer joins a network out of the box with no interface card to order. The USB host port accepts a keyboard or scanner for standalone label entry and takes firmware updates from a drive. RS-232 serial and Wi-Fi are alternatives to Ethernet in that same slot rather than additions to it, so a build needing both a radio and a wired network port is a different part number.

Link-OS and Languages

The ZD421 runs Zebra Link-OS, giving IT and operations teams remote configuration, status monitoring, security policy and firmware management across a fleet of printers rather than one machine at a time. Resident ZPL II, EPL 2, XML, ZBI and PDF Direct mean the printer drops into an existing label environment without rewriting templates, including estates originally built around older Zebra desktop hardware, and PDF Direct lets a host send a PDF straight to the printer. Memory is 512 MB Flash and 256 MB SDRAM, enough for the stored formats, fonts and graphics a typical desktop labelling workload keeps resident.

Operator Interface

The ZD421 uses a five-icon status panel and three buttons rather than a screen. There is no LCD anywhere on the ZD421 platform, so this is not an option left off this part number: if an on-screen menu matters to the operation, the ZD621 is the model with a colour touch display. In practice the icon panel covers what a desktop printer needs day to day, showing status, pause, media and ribbon conditions at a glance, and setup runs from the Bluetooth Low Energy link to a phone or from a host on the network. A Zebra Keyboard Display Unit is available as an accessory where standalone data entry is required.

Configuration Notes

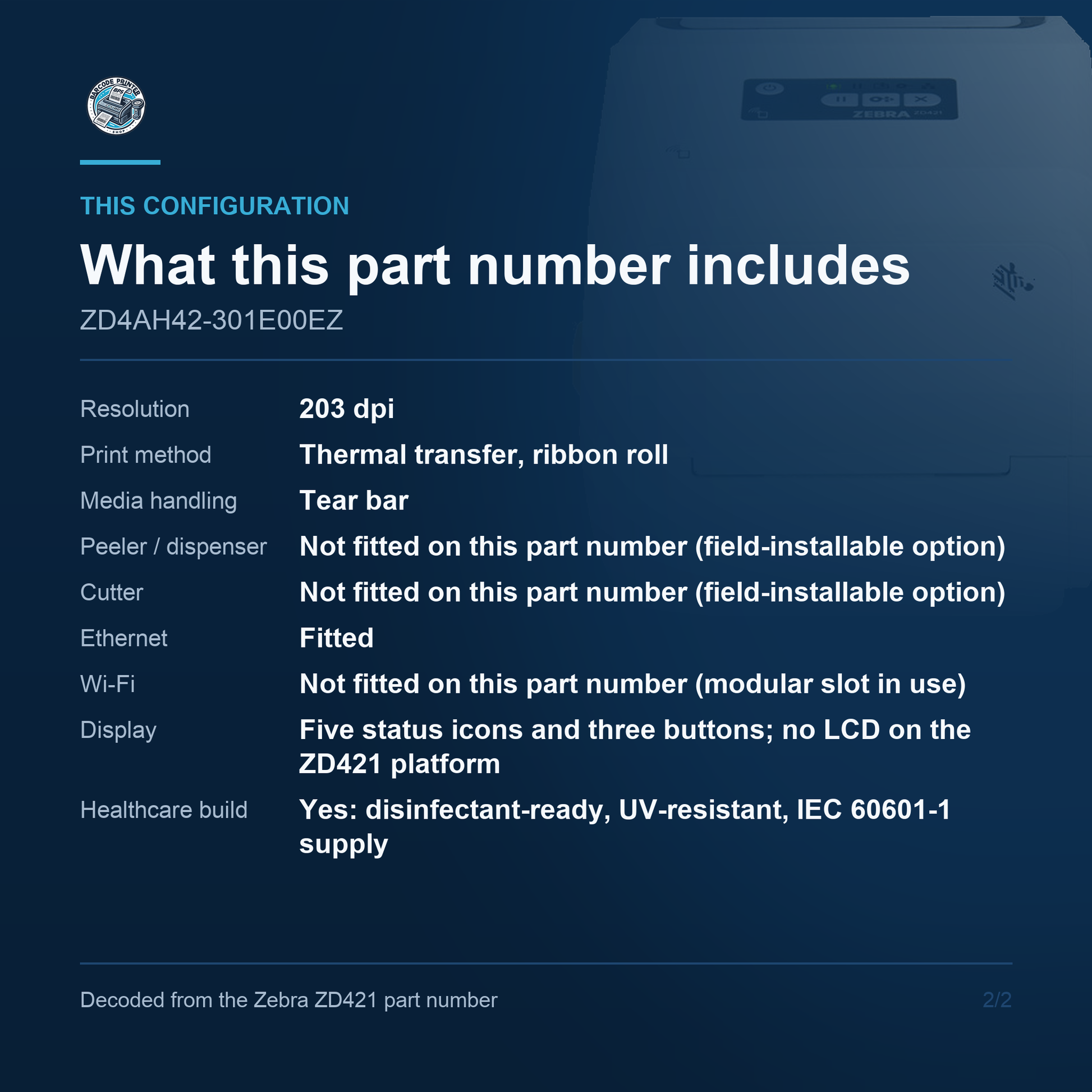

Part number ZD4AH42-301E00EZ is the 203 dpi thermal transfer build with tear-bar media handling and Ethernet fitted. ZD421 part numbers differ by resolution, print method, media handling and which interface occupies the modular slot, and none of those differences is visible from the model name on the box. A printer ordered simply as 'a ZD421' can arrive at the wrong resolution or without the network port a line depends on, so confirm the exact part number against the requirement before ordering, and match the part number already installed when replacing a unit in service.

For clinical, pharmacy and laboratory environments that need dependable 203 dpi desktop label printing from a compact, well-supported platform, the Zebra ZD421 ZD4AH42-301E00EZ is a proven choice that integrates with the systems you already run. Contact us to learn more or secure this solution for your business today.
