Zebra ZD421 Desktop Thermal Transfer Label Printer 300 DPI USB Ethernet ZD4A043-301E00EZ

Key Features

• Prints at 300 dpi, resolving dense two-dimensional codes, small point sizes and fine graphic detail.
• Reaches up to 4 ips (102 mm/s) at 300 dpi, with a maximum print width of 4.27 inches (108 mm).
• Thermal transfer with a ribbon roll, and direct thermal as well, so label life is set by the media rather than the hardware.
• Tear bar fitted as standard; a dispenser or peeler and a cutter are field-installable later.
• Compact desktop footprint fits a counter, a benchtop or a shelf without a dedicated stand.
• OpenACCESS clamshell design lets an operator drop in a new media roll in seconds.
• Ethernet 10/100 is fitted, so the printer joins the network without an interface card.
• Bluetooth Low Energy and Print Touch tap-to-pair speed up setup from a phone or tablet.
• Resident ZPL II, EPL 2, XML, ZBI and PDF Direct drop the printer into existing label workflows.
• Link-OS provides remote configuration, monitoring and firmware management across a printer fleet.
• Handles media from 0.585 to 4.41 inches wide on rolls up to 5 inches in outer diameter.

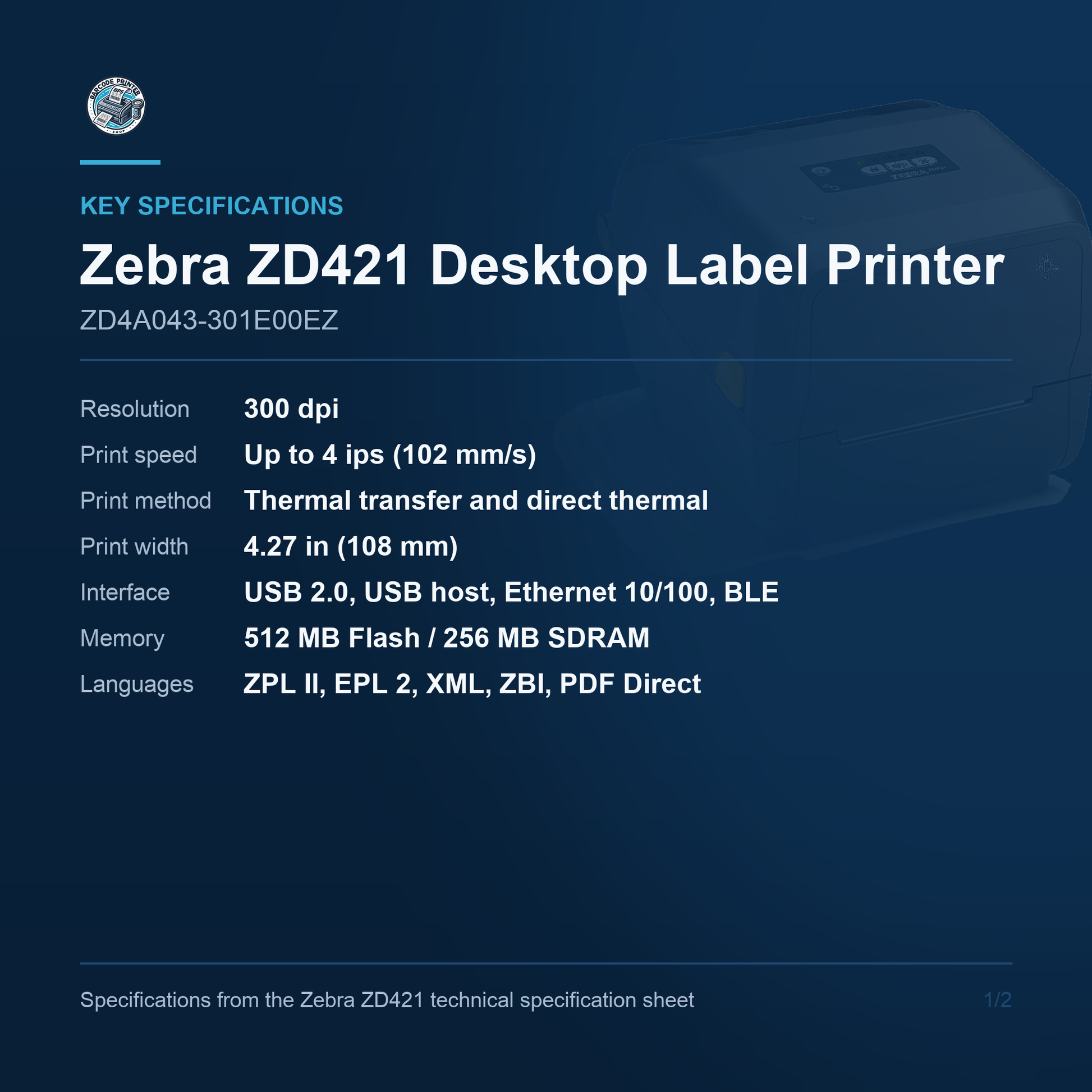

Key Specifications

• Print Resolution: 300 dpi
• Maximum Print Speed: Up to 4 ips (102 mm/s) at 300 dpi
• Print Method: Thermal transfer with ribbon roll, and direct thermal
• Maximum Print Width: 4.27 inches (108 mm)
• Media Handling: Tear bar; dispenser or peeler and cutter available as field-installable options
• Standard Connectivity: USB 2.0, USB host, Ethernet 10/100, Bluetooth Low Energy 5.0
• Modular Connectivity Slot: Used by the fitted Ethernet interface on this part number
• Operator Interface: Five status icons and three buttons; the ZD421 platform has no LCD
• Memory: 512 MB Flash and 256 MB SDRAM
• Printer Languages: ZPL II, EPL 2, XML, ZBI and PDF Direct
• Media: Width 0.585 to 4.41 in; roll up to 5.0 in outer diameter on 0.5 in or 1.0 in cores
• Dimensions and Weight: 10.5 in L x 8.0 in W x 7.44 in H; 4.52 lbs (2.05 kg)

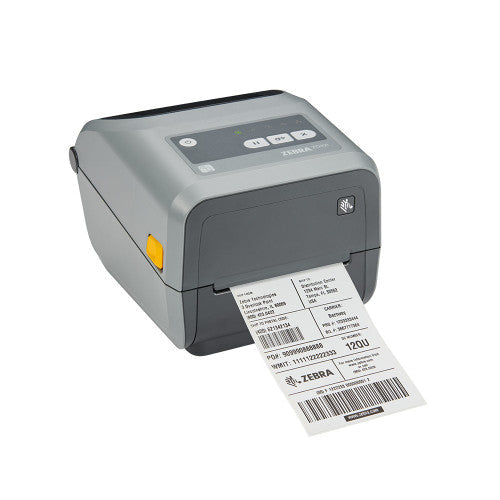

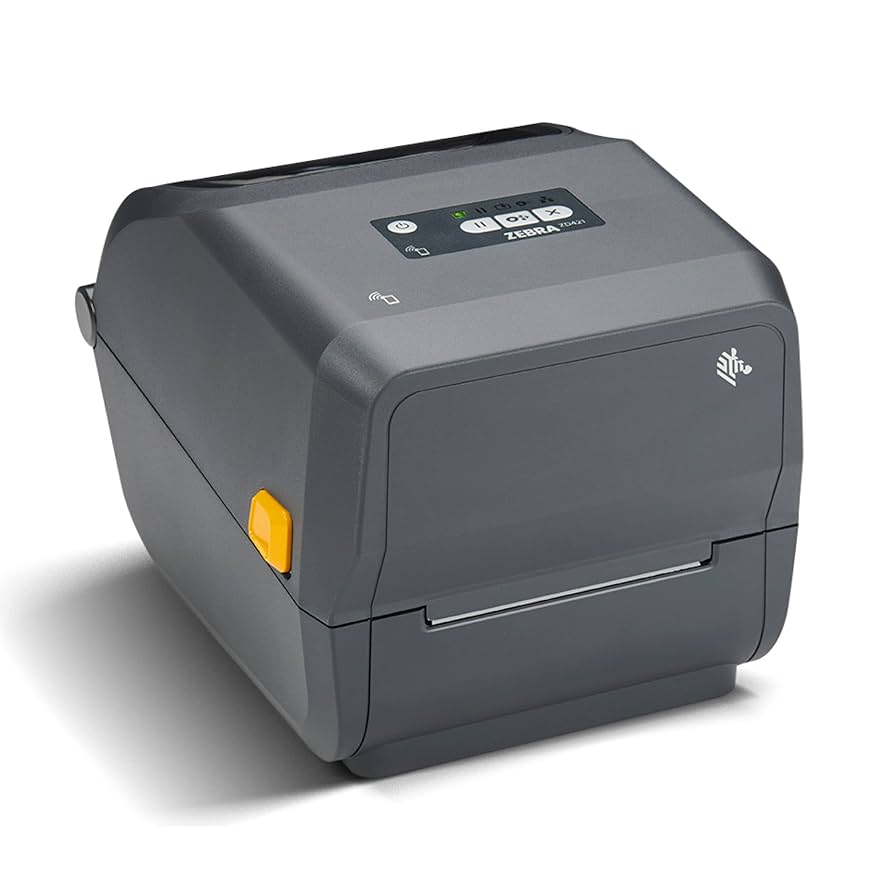

Desktop Build

The Zebra ZD421 (ZD4A043-301E00EZ) is a four-inch desktop label printer designed to sit on a counter, a packing bench or a shelf and run all day without special handling. The OpenACCESS clamshell opens fully so an operator can drop in a new roll in seconds rather than threading media through a fixed path. It takes rolls up to 5.0 inches in outer diameter on 0.5-inch or 1.0-inch cores, with optional adapters for 1.5-inch, 2.0-inch and 3.0-inch cores, and handles media from 0.585 to 4.41 inches wide. Rated operating range is 40 to 105 degrees Fahrenheit, which covers a warehouse packing station as readily as an office. This configuration measures 10.5 by 8.0 by 7.44 inches and weighs 4.52 lbs.

Print Performance

This part number prints at 300 dpi across a maximum width of 4.27 inches (108 mm), at speeds up to 4 ips (102 mm/s). Note that Zebra's headline figure of 6 ips for the ZD421 is the 203 dpi number. At 300 dpi the maximum is 4 ips, and the finer dot pitch is the point: dense two-dimensional codes, small point sizes and detailed graphics resolve cleanly at this resolution where they would not at 203 dpi. Choose this build when label content is dense or the label itself is small. Thermal transfer with a ribbon roll is fitted here, and the printer also runs direct thermal, so the durability of the finished label is a media decision rather than a hardware one.

Media Handling Options

A tear bar is fitted as standard on ZD4A043-301E00EZ, presenting each finished label ready to lift and apply with nothing else in the mechanism to maintain. For most receiving, shipping and product labelling this is the right choice and the least expensive one. A dispenser or peeler with a label-present sensor, and a cutter, are both available as field-installable options, so a workflow that later needs peel-and-present or cut labels can be upgraded on site without replacing the printer. Neither is fitted to this part number, so order the option separately if the application requires it.

Connectivity

ZD4A043-301E00EZ ships with USB 2.0, a USB host port and Ethernet 10/100 fitted, plus Bluetooth Low Energy for setup from the Zebra Printer Setup Utility on a phone or tablet, and Print Touch tap-to-pair. Ethernet occupies the modular connectivity slot on this configuration, which means the printer joins a network out of the box with no interface card to order. The USB host port accepts a keyboard or scanner for standalone label entry and takes firmware updates from a drive. RS-232 serial and Wi-Fi are alternatives to Ethernet in that same slot rather than additions to it, so a build needing both a radio and a wired network port is a different part number.

Link-OS and Languages

The ZD421 runs Zebra Link-OS, giving IT and operations teams remote configuration, status monitoring, security policy and firmware management across a fleet of printers rather than one machine at a time. Resident ZPL II, EPL 2, XML, ZBI and PDF Direct mean the printer drops into an existing label environment without rewriting templates, including estates originally built around older Zebra desktop hardware, and PDF Direct lets a host send a PDF straight to the printer. Memory is 512 MB Flash and 256 MB SDRAM, enough for the stored formats, fonts and graphics a typical desktop labelling workload keeps resident.

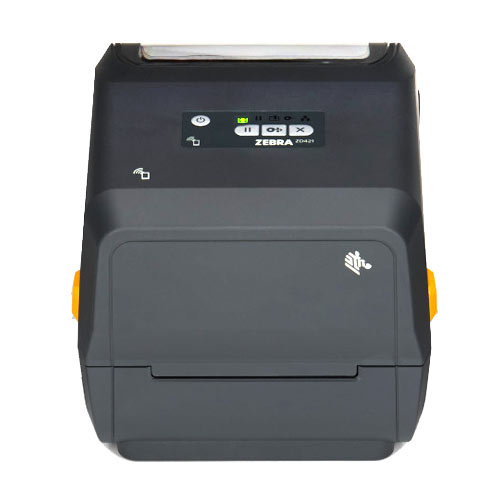

Operator Interface

The ZD421 uses a five-icon status panel and three buttons rather than a screen. There is no LCD anywhere on the ZD421 platform, so this is not an option left off this part number: if an on-screen menu matters to the operation, the ZD621 is the model with a colour touch display. In practice the icon panel covers what a desktop printer needs day to day, showing status, pause, media and ribbon conditions at a glance, and setup runs from the Bluetooth Low Energy link to a phone or from a host on the network. A Zebra Keyboard Display Unit is available as an accessory where standalone data entry is required.

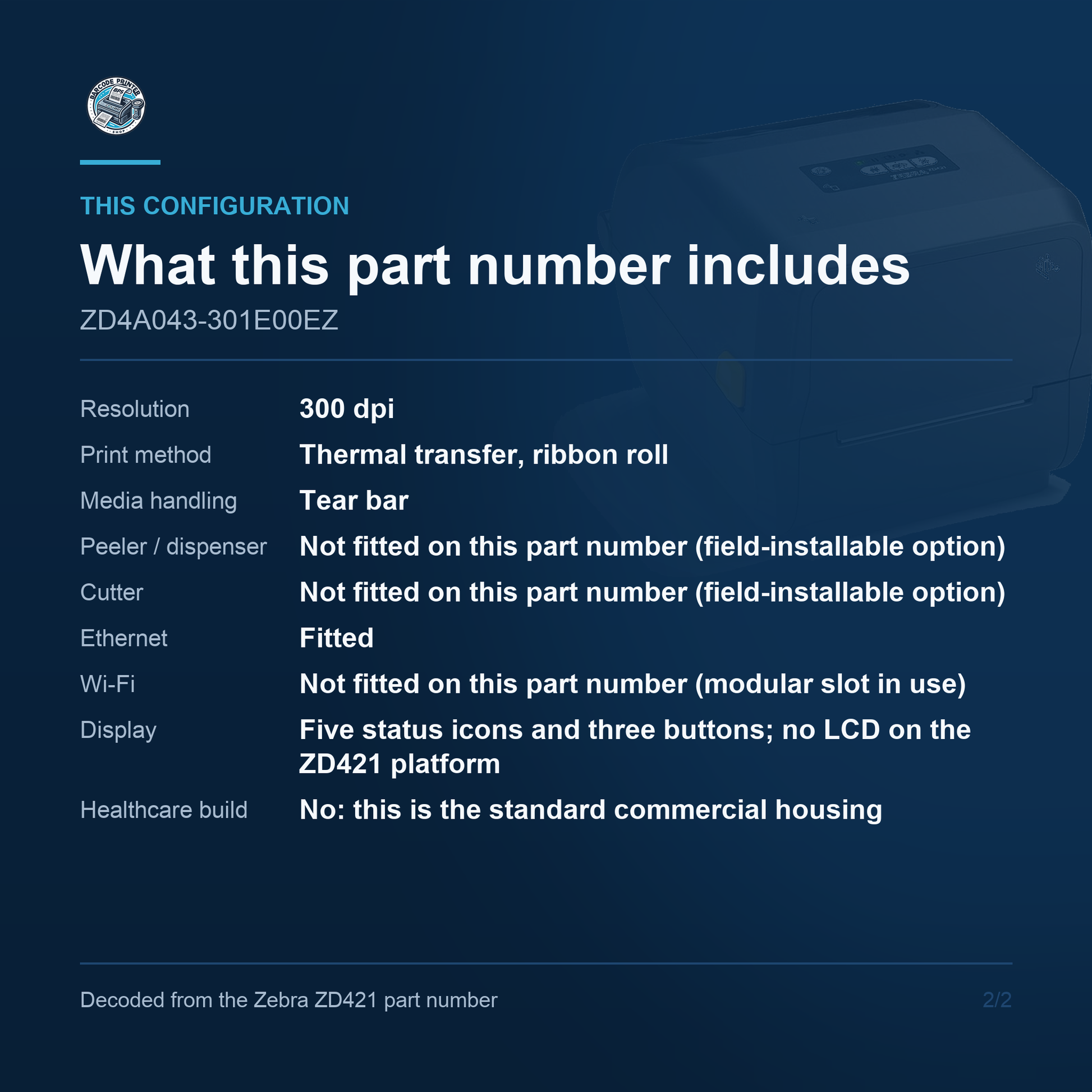

Configuration Notes

Part number ZD4A043-301E00EZ is the 300 dpi thermal transfer build with tear-bar media handling and Ethernet fitted. ZD421 part numbers differ by resolution, print method, media handling and which interface occupies the modular slot, and none of those differences is visible from the model name on the box. A printer ordered simply as 'a ZD421' can arrive at the wrong resolution or without the network port a line depends on, so confirm the exact part number against the requirement before ordering, and match the part number already installed when replacing a unit in service.
