Zebra DS9308 1D/2D Corded Barcode Scanner Black USB DS9308-SR4U2100AZW

Key Features

• Rapid Presentation Scanning: Offers best-in-class swipe speeds and wide field of view for fast checkout.
• PRZM Imaging Tech: High-resolution sensor and software deliver accurate decoding across challenging barcode types.
• Compact and Stylish: Slim footprint fits retail counters, POS terminals, and mobile payment stations.
• Durable Design: IP52 sealing, drop and tumble ratings ensure long-term performance.
• Plug-and-Play Setup: USB model supports instant deployment with auto-detect interfaces and global keyboard support.
• Versatile Decode Support: Reads from paper, labels, computer screens, smartphones, and tablets.
• EAS Integration Ready: Compatible with electronic article surveillance (EAS) deactivation systems.
• Minimal Maintenance: Elevated circuitry and hidden beeper openings reduce downtime from debris or moisture.

Key Specifications

• Model Number: DS9308‑SR4U2100AZW (DS9308‑SR Standard Range USB Kit).
• Scan Technology: 1D/2D presentation imager with PRZM Intelligent Imaging and 800 MHz microprocessor.
• Sensor Resolution: 1.28 MP (1280 × 800 pixels) CMOS image sensor.
• Scan Speed: Up to 305 cm/s (120 in/s) swipe throughput.
• Decoding: Supports 1D, 2D, stacked, PDF417, DataMatrix, QR Code, DotCode, Han Xin, MaxiCode and more.
• Scan Field of View: Approximately 52° horizontal × 33° vertical.
• Connectivity: USB interface; auto-host detect cable included.
• Durability: Rated IP52 against dust/spills; withstands 1.5 m (5 ft) drops and 1,000 tumbles at 0.5 m.
• Weight & Dimensions: Approximately 318 g (11.2 oz); size ~14.5 × 8.6 × 8.3 cm (5.7″ × 3.4″ × 3.3″).
• User Indicators: Beeper and front/back decode LEDs with adjustable volume and tone.
• Environmental Tolerance: Operates from 0 °C to 50 °C; storage −40 °C to 70 °C; up to 95% non-condensing humidity.
• Warranty: Backed by Zebra's 3-year standard limited warranty.

Product Overview

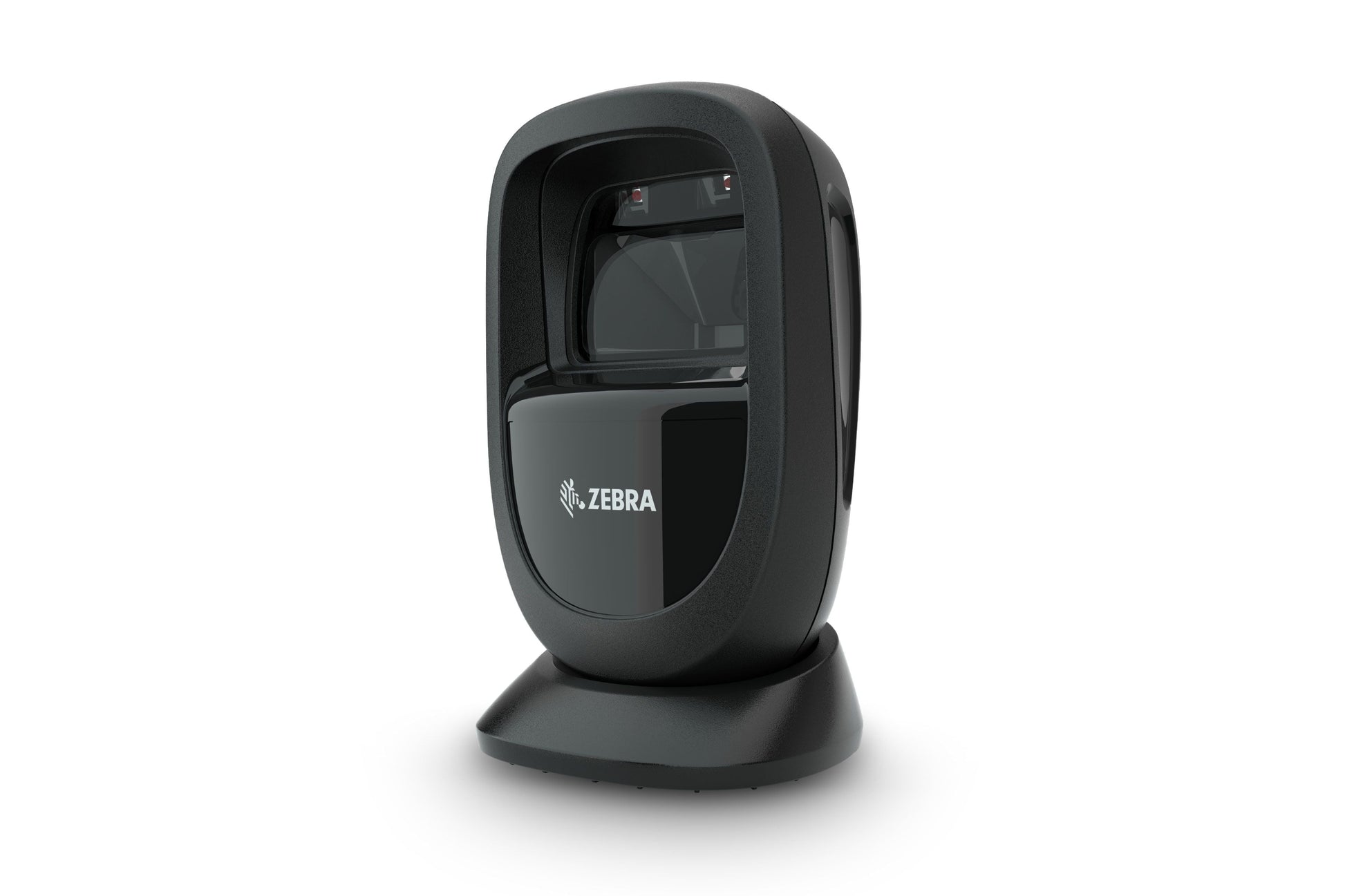

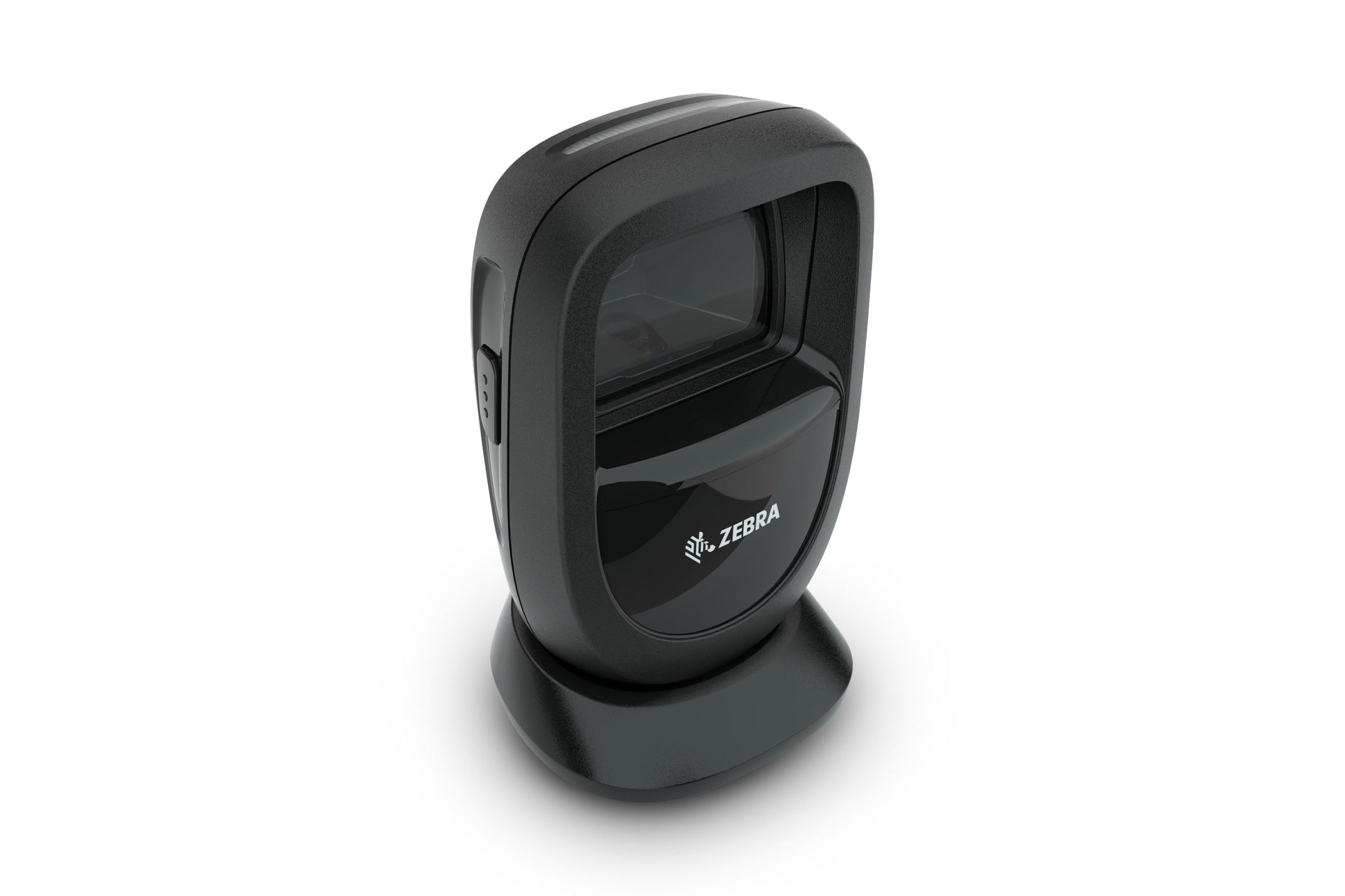

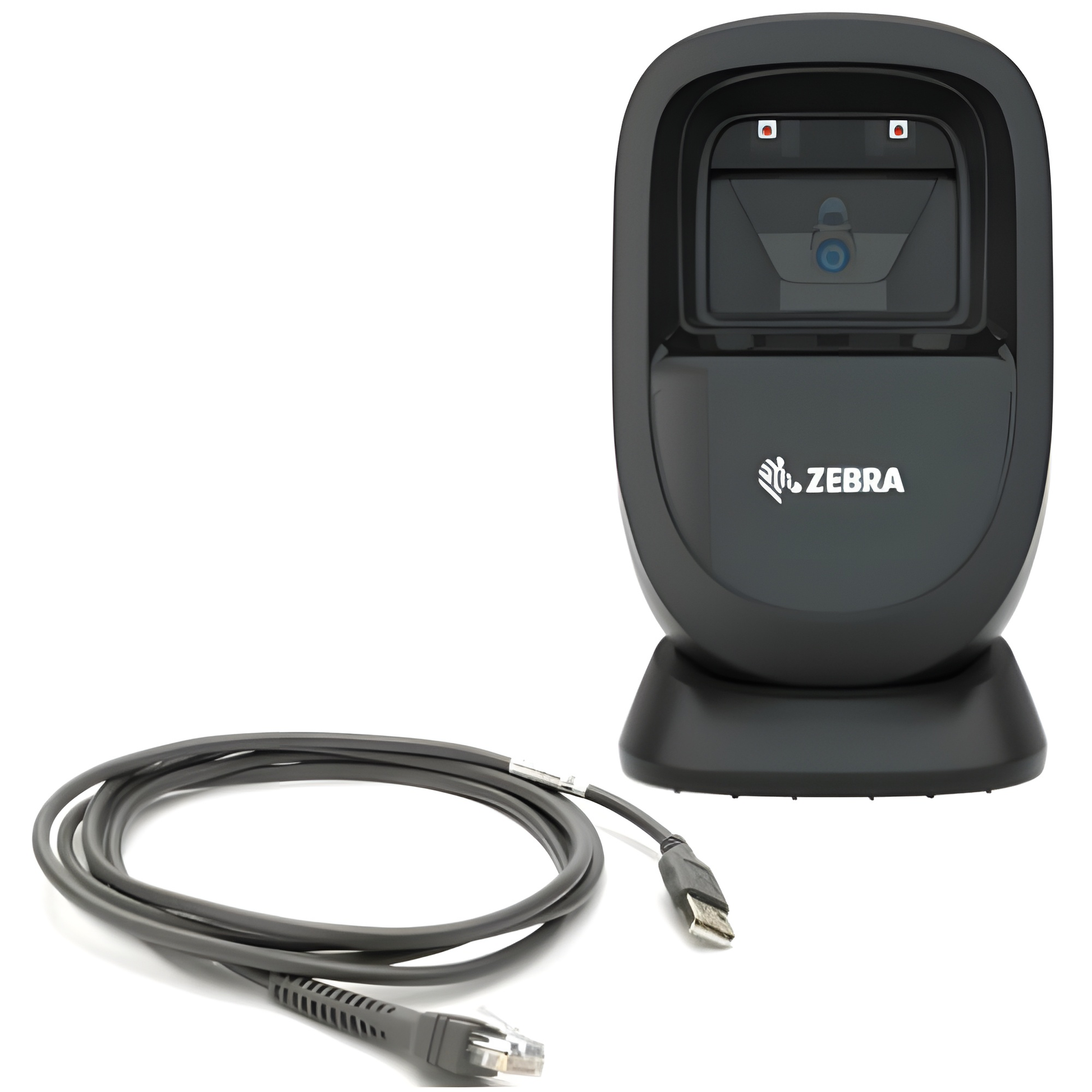

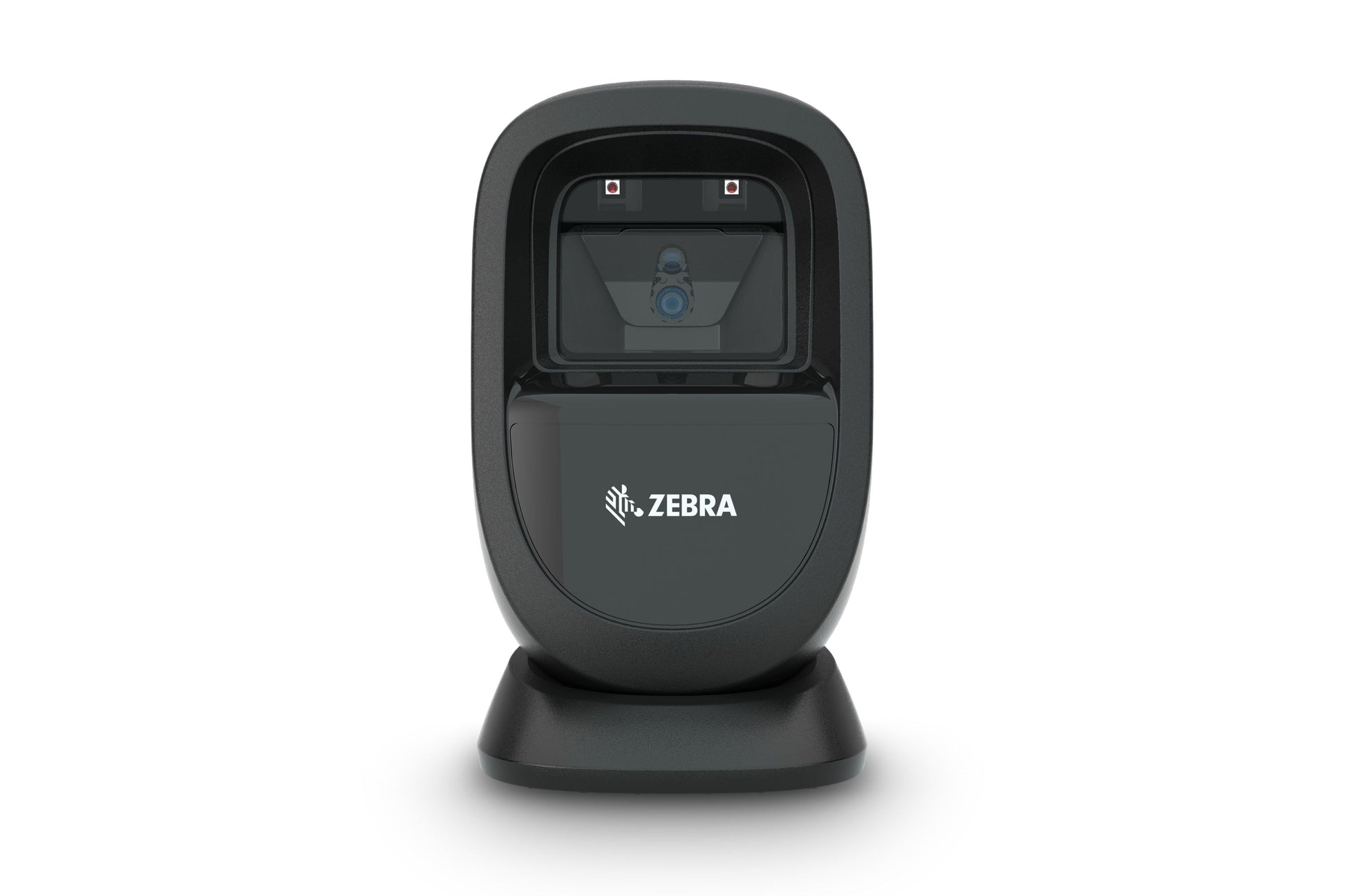

The Zebra DS9308‑SR4U2100AZW is a high-performance presentation scanner specifically designed for retail, hospitality, and point-of-sale environments where speed, space, and consistent performance are essential. Its compact form factor occupies minimal counter space while offering enterprise-grade scanning capabilities backed by Zebra's PRZM imaging technology and a fast 800 MHz processor. This USB kit configuration ships in a Midnight Black housing with a shielded USB cable included, so it installs directly at a checkout lane or workstation without a separate stand or mount. Zebra backs the scanner with a three-year standard manufacturer warranty.

Scanning Capabilities

Equipped with a high-resolution CMOS sensor and wide field of view, the DS9308 captures both 1D and 2D barcodes—printed or digital—even when displayed on devices such as smartphones or tablets. With swipe speeds reaching up to 305 cm/s (120 in/s), it effectively decodes barcodes as presented, keeping lines moving efficiently during busy periods. The imager's 52° horizontal by 33° vertical field of view is paired with wide skew and pitch tolerances of up to 60° and a full 360° roll tolerance, so cashiers can present merchandise naturally at an effective read range of roughly 8.8 in. (223.5 mm) without precise alignment to the scan window.

Durable Design

The device is built to perform consistently across demanding environments. It meets IP52 sealing standards to resist dust and spills and survives drops from heights of 1.5 meters and 1,000 tumbles at 0.5 meters. The architecture includes elevated circuit boards and a concealed beeper chamber to minimize maintenance needs and extend lifespan. The housing also carries ±15 kV air-discharge ESD immunity, guarding the scanner's internal electronics against the static discharge common on dry retail sales floors and near carpeted checkout areas.

Effortless Deployment

Ease of deployment is a standout benefit: the USB kit includes an auto-detect cable supporting multiple host interfaces, with global keyboard support integrated. The DS9308 operates out of the box in presentation mode without special drivers or configuration, enabling rapid rollout in fast-paced retail setups. Because the scanner draws power directly from its host USB connection at 4.5 to 5.5 VDC and 335 to 350 mA depending on operating mode, no external power supply is required for standard checkout-counter installations, further simplifying rollout across multiple lanes.

User Experience

The scanner features dual decode LEDs on both the front and rear, along with a configurable beeper for audible confirmation, and adjustable volume and tone settings, giving cashiers clear feedback on successful reads from either side of the unit. For loss-prevention workflows, the DS9308 is also compatible with Checkpoint electronic article surveillance (EAS) systems, allowing tag deactivation to occur as part of the normal scanning motion at checkout rather than as a separate step.

Environmental Resilience

Operating effectively under a wide range of environmental conditions, the scanner functions reliably within temperatures from 0 °C to 50 °C and endures storage at temperatures from −40 °C to 70 °C, with humidity tolerance up to 95% non-condensing. Its thoughtful engineering caters specifically to real-world retail and counter-based scanning, and the unit is RoHS compliant, supporting businesses that need to meet environmental-compliance requirements across their hardware fleet.

The Zebra DS9308‑SR4U2100AZW pairs fast, accurate 1D/2D barcode capture with a compact, durable design and plug-and-play USB deployment, making it a dependable choice for retail and point-of-sale checkout environments. Contact us to learn more or secure this solution for your business today.
