Zebra DS2208 Corded 1D/2D Imager Scanner Twilight Black Scanner Only DS2208-SR00007ZZWW
Zebra DS2208 Corded 1D/2D Imager Scanner Twilight Black Scanner Only DS2208-SR00007ZZWW
Key Features
- Scanner only: no interface cable or stand in the box, so order the cable that matches your host system.
- Reads 1D and 2D barcodes, including QR, Data Matrix and PDF417, with a 640 x 480 area imager.
- Supports USB, RS-232, keyboard wedge and IBM 46XX hosts, depending on the Zebra cable fitted.
- PRZM decode algorithms read poorly printed, damaged and low-contrast 1D and 2D barcodes on the first pass.
- Reads a 13 mil UPC from 0.5 to 14.5 inches and a 20 mil QR code out to 11 inches.
- Tolerates ±65 degree skew and pitch, plus full 360 degree roll, so labels need no careful lining up.
- Supports over 90 international keyboard layouts, so one part number serves multi-country deployments.
- Sealed to IP52 and rated for multiple 5 ft (1.5 m) drops to concrete and 250 tumbles.
- Backward compatible with Zebra LS2208 series cables, which lowers the cost of replacing laser scanners.
- Configured and updated with Zebra 123Scan and Scanner Management Service across a fleet.
- Covered by Zebra's 60-month warranty, the published warranty term for the corded DS2208 model.
Key Specifications
- Scan Engine: 640 x 480 area imager with PRZM decode algorithms
- Field of View: 32.8° H x 24.8° V nominal
- Motion Tolerance: Up to 5 in/s handheld (13 mil UPC); up to 30 in/s hands-free
- Skew, Pitch and Roll: ±65°, ±65°, 0 to 360°
- Decode Range: 13 mil UPC 0.5 to 14.5 in; 20 mil QR 0 to 11 in; 5 mil Code 128 0.6 to 4.0 in
- Aimer and Illumination: 624 nm amber linear LED aimer; two 645 nm red LEDs
- Interfaces: USB, RS-232, keyboard wedge, IBM 46XX over RS-485; cable sold separately
- In the Box: Scanner only; no cable or stand
- Sealing and Drop: IP52; multiple 5 ft (1.5 m) drops to concrete; 250 tumbles at 1.5 ft
- Dimensions and Weight: 6.5 x 2.6 x 3.9 in (16.5 x 6.6 x 9.9 cm); 5.7 oz (161.6 g)
- Environment: 32 to 122 F operating; -40 to 158 F storage; 5 to 95% RH
- Warranty: 60 months
Scanner Only

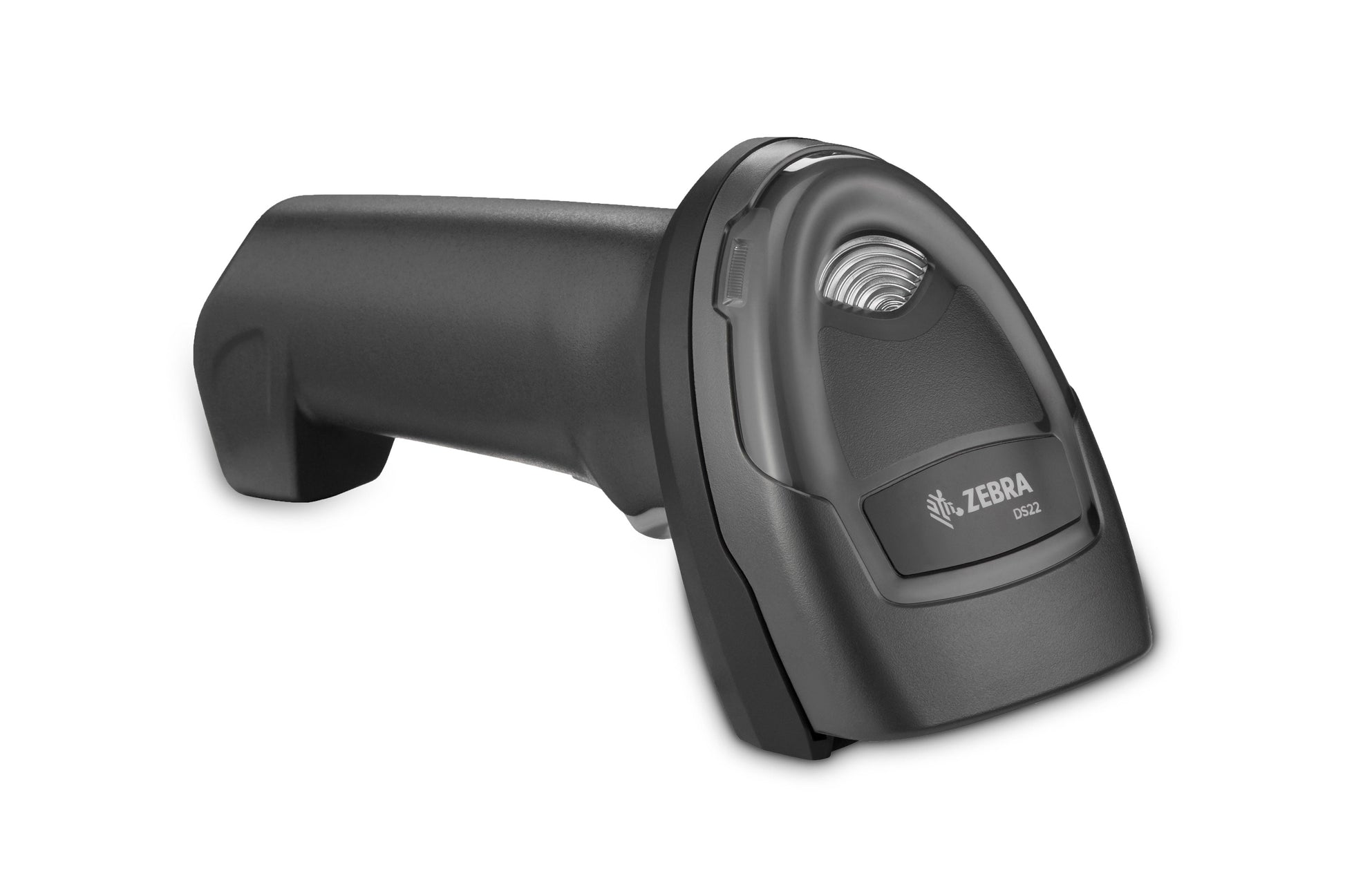

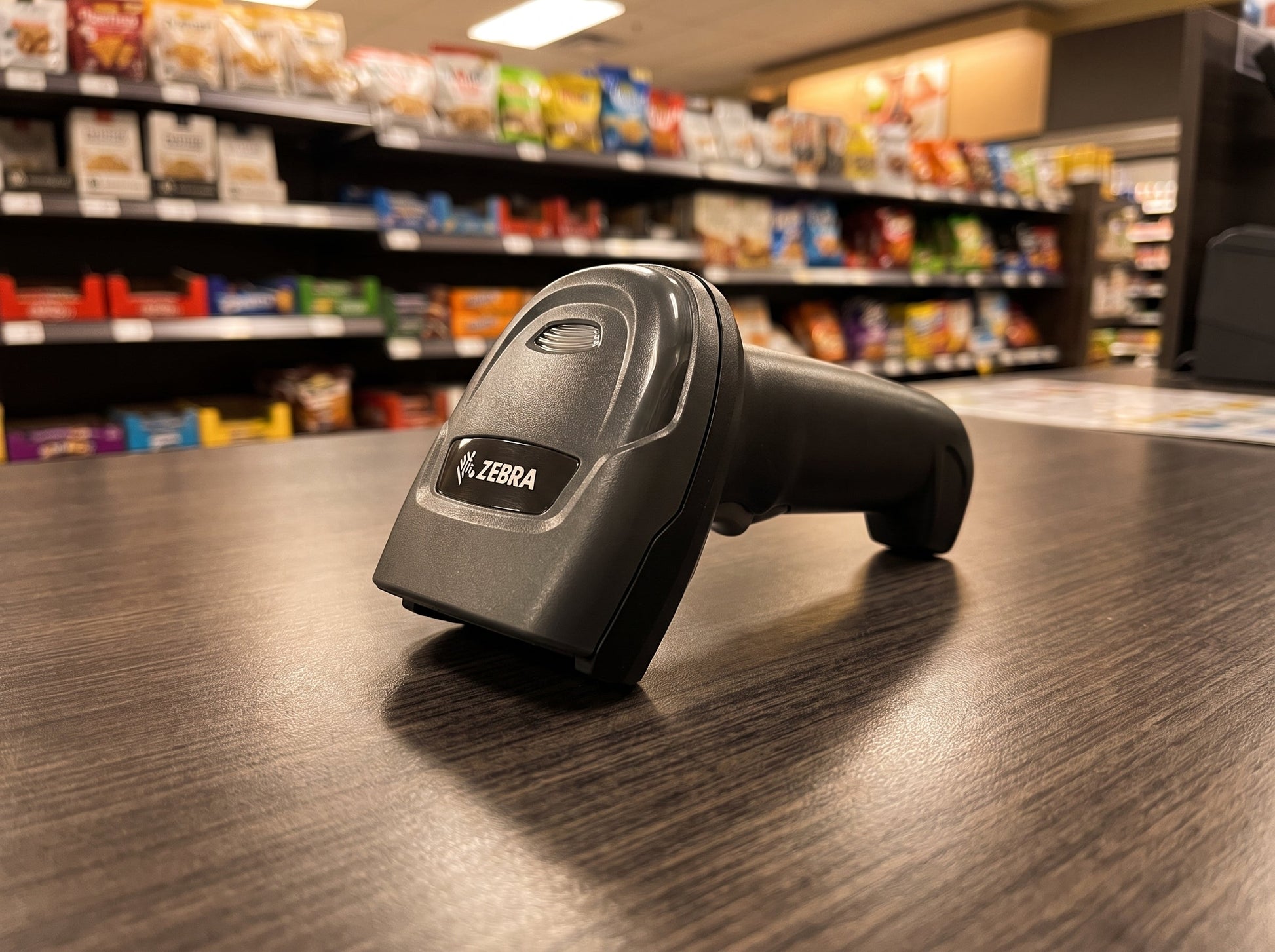

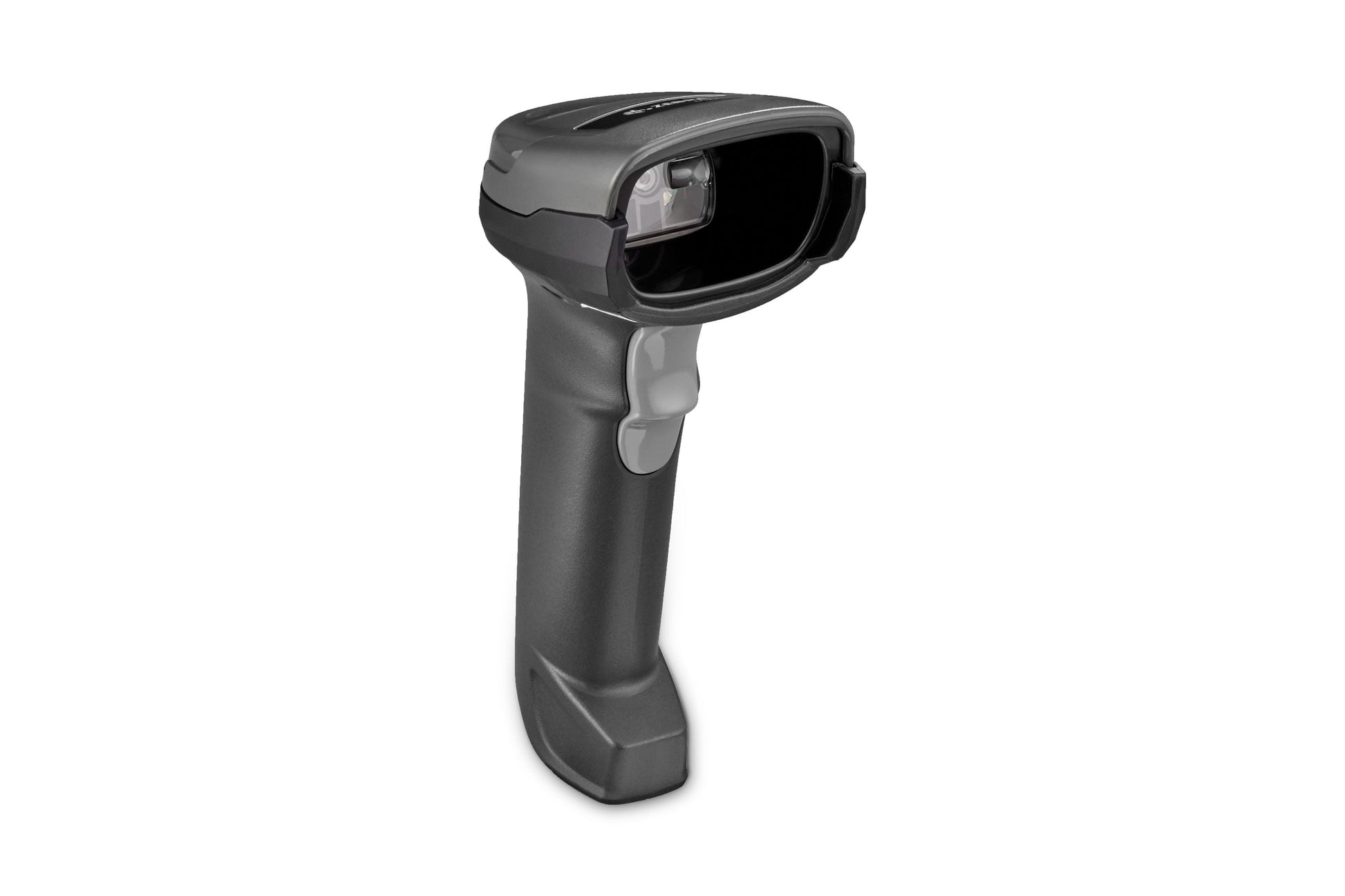

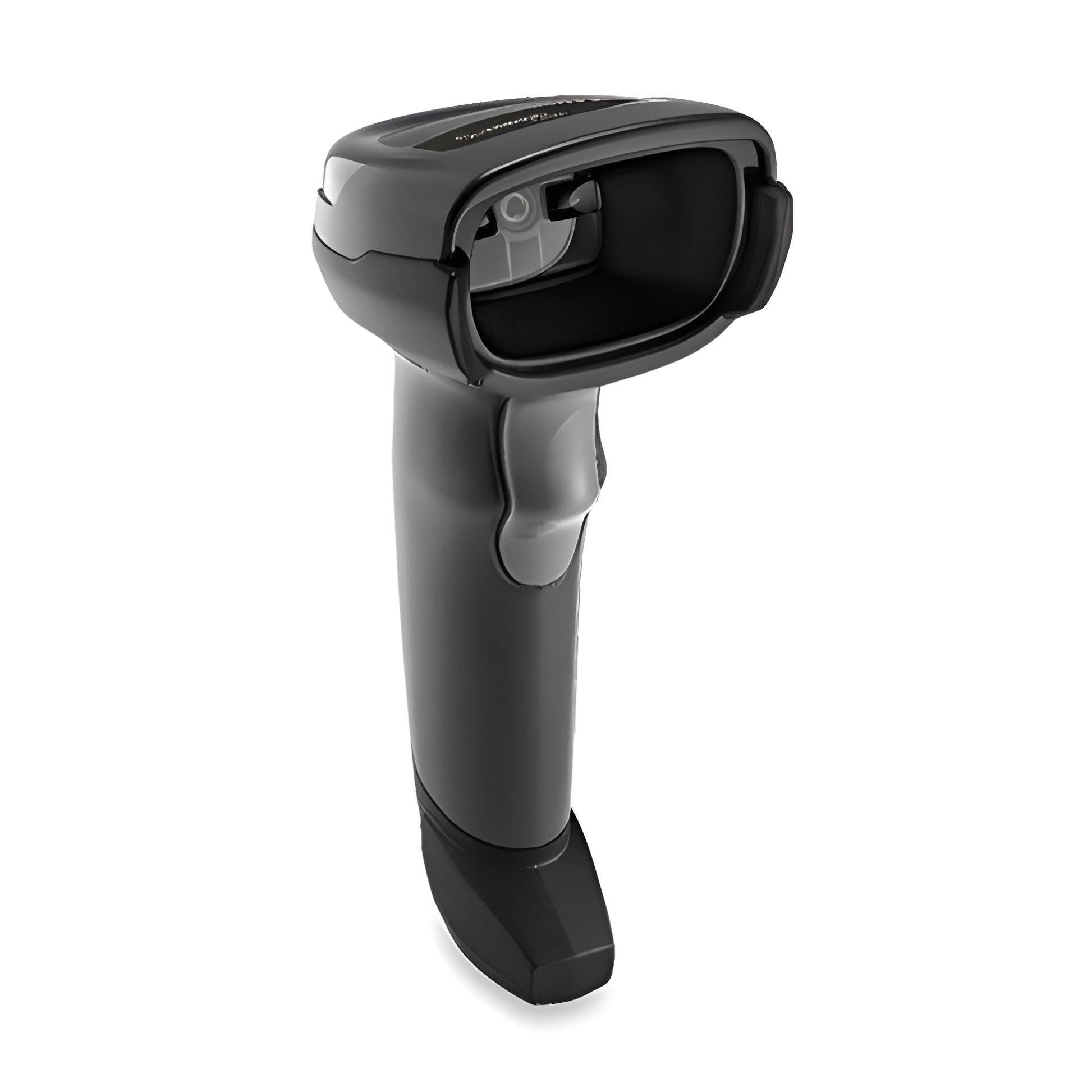

DS2208-SR00007ZZWW is the Zebra DS2208 standard range imager in Twilight Black, supplied as the scanner alone. There is no interface cable and no stand in the box, which is deliberate: the DS2208 connects to USB, RS-232, keyboard wedge and IBM 46XX hosts, and the cable decides which one. This is the part number to order when you already have cables and stands in service, when you are replacing a failed scanner, or when the host needs something other than USB. For a ready-to-use USB setup with a cable and gooseneck stand, the kit is DS2208-SR7U2100SGW.
Imaging and Decoding
The DS2208 is a corded area imager with a 640 x 480 sensor, a 32.8 by 24.8 degree field of view, an amber linear aimer and red illumination. Zebra's PRZM decode algorithms are built to read barcodes that are poorly printed, damaged or low in contrast. It decodes the retail 1D codes, UPC/EAN, Code 128, Code 39 and GS1 DataBar, and 2D codes including PDF417, Data Matrix, QR, Micro QR, Aztec, MaxiCode, Han Xin and postal codes. That covers shelf and product labels, loyalty cards, coupons and the 2D codes printed on shipping documents and ID cards, from one scanner at the register or workstation.
Range and Tolerance
Decode range depends on the code: Zebra rates a 13 mil UPC from 0.5 to 14.5 inches, a 20 mil QR code out to 11 inches, a 10 mil Data Matrix from 0.3 to 6.2 inches and a 5 mil Code 128 from 0.6 to 4 inches. Handheld, the scanner tolerates motion up to 5 inches per second on a 13 mil UPC; set in a stand for hands-free use, it reads items swiped past at up to 30 inches per second. Skew and pitch tolerance is 65 degrees in each direction with full rotation, so an operator can scan from almost any angle without squaring the scanner to the label.
Cables and Stands
Zebra states that the DS2208 is backward compatible with LS2208 series cables, so a site moving from LS2208 laser scanners to 2D imaging can reuse the cables already at each lane. For a new USB installation, Zebra's CBA-U21-S07ZBR is a 7 ft straight shielded USB cable with a Series A connector, the same cable used in the USB kit. For hands-free use, the black Gooseneck Intellistand is part 20-71043-04R, and Zebra also sells a Universal Gooseneck Intellistand, STND-GS00UNC-04. In a stand, the scanner reads items swiped past at up to 30 inches per second.
Durability
Zebra's current DS2208 specification rates the scanner to IP52 against dust and dripping liquid; an earlier version of the sheet said IP42, which some listings still repeat. It is rated for multiple 5 ft (1.5 m) drops to concrete and 250 tumbles in a 1.5 ft tumbler, and for ESD of 15 kV air and 8 kV direct. It operates from 32 to 122 degrees Fahrenheit and 5 to 95 percent relative humidity, non-condensing, and handles ambient light up to 10,000 foot-candles. The scanner weighs 5.7 ounces and measures 6.5 by 2.6 by 3.9 inches.
Deployment Tools
The DS2208 supports over 90 international keyboard layouts, so one part number can be deployed across countries and reconfigured if a unit moves to another market. Zebra's 123Scan utility sets parameters, updates firmware and generates reports, and Scanner Management Service handles remote management and asset information across a fleet. Developers can integrate the scanner with the Zebra Scanner SDK. Zebra states the DS2208 is backward compatible with LS2208 series cables, which lets a store replace laser scanners with 2D imagers without recabling every lane. The corded DS2208 carries a 60-month warranty.
What Is Included
This part number ships as the DS2208 scanner only, in Twilight Black. No interface cable, stand or power supply is included, and the scanner draws its power from the host through the cable. Choose the cable by host: USB for most current PCs, registers and tablets, RS-232 for older terminals and scales, keyboard wedge for systems that need the scanner inline with a keyboard, or IBM 46XX for IBM and Toshiba registers. If you are unsure which cable your host needs, send us the terminal model and we will match it.
For stores and warehouses replacing scanners or moving from LS2208 lasers to 2D imaging with cables already in place, the Zebra DS2208-SR00007ZZWW adds 1D/2D scanning at the lowest cost per lane. Contact us to learn more or secure this solution for your business today.
