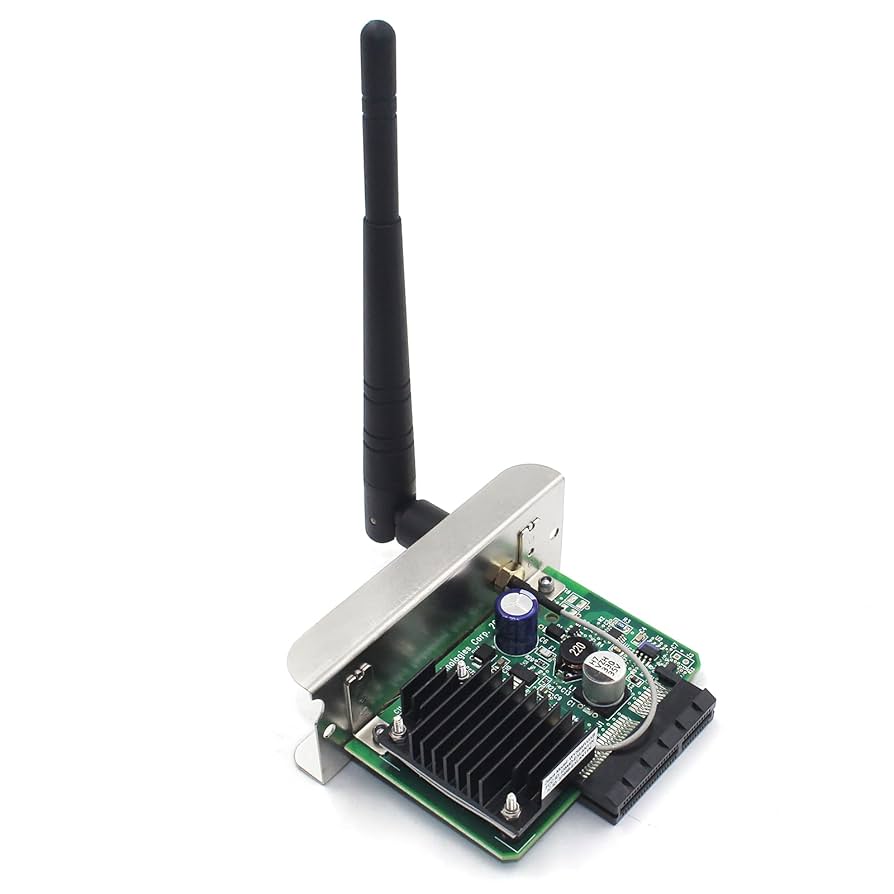

Zebra 802.11a/b/g/n Wireless Option Kit for ZT210 ZT220 ZT230 ZT410 ZT420 Printers Field Installable P1058930-097A

End of life. Zebra has ended life on this wireless option kit, which is listed in Zebra's own Industrial Printer Accessories End of Life guide. It fits the Zebra ZT210, ZT220, ZT230, ZT410 and ZT420 only. It does not fit the current ZT111, ZT211, ZT231, ZT411 or ZT421, even though Zebra reuses the ZT200 Series and ZT400 Series names across both generations. For those printers the wireless part is Zebra P1083320-037A, which Barcode Printer Shop does not currently stock. Remaining kits are sold for the installed base of older ZT-series printers still in service.

Key Features

• Adds 802.11a/b/g/n dual-band wireless to a Zebra ZT210, ZT220, ZT230, ZT410 or ZT420 printer.
• Does NOT fit the ZT111, ZT211, ZT231, ZT411 or ZT421. Those take Zebra P1083320-037A instead.
• Field installable, so an existing printer can be converted without a service call.
• The -097A suffix is the United States and Canada regulatory build of this kit.
• Dual-band operation lets the printer join a 5 GHz network and avoid a congested 2.4 GHz band.
• No Bluetooth. This kit adds Wi-Fi only.
• ZT200-series printers have a single option slot, so fitting this displaces parallel or Ethernet.
• Requires printer firmware V72.18.X or later on a ZT200, or V75.19.7Z or later on a ZT400.

Key Specifications

• Type: Field-installable wireless option card kit
• Radio: 802.11a/b/g/n, dual band
• Bluetooth: Not included. This kit adds Wi-Fi only
• Fits: Zebra ZT210, ZT220, ZT230, ZT410, ZT420
• Does not fit: ZT111, ZT211, ZT231, ZT411, ZT421
• Region build: -097A is United States and Canada; -097B Japan, -097C rest of world
• Firmware: ZT200 V72.18.X or later; ZT400 V75.19.7Z or later
• Option slot: ZT200 series has one slot; this kit occupies it
• Lifecycle: End of life per Zebra's accessories end-of-life guide

Which printers this fits

Read this before ordering, because the naming is genuinely misleading. Zebra has used the names ZT200 Series and ZT400 Series for two different generations of printer. This kit belongs to the first: it fits the ZT210, ZT220, ZT230, ZT410 and ZT420. It does not fit the ZT111, ZT211 or ZT231, nor the ZT411 or ZT421, which are the current printers carrying those series names. Zebra's own parts catalogue for the ZT111, ZT211 and ZT231 lists P1083320-037A, P1083320-037B and P1083320-037C as the wireless options and does not contain this part number anywhere. If you are looking at a ZT231 on this site, this is not the card for it.

What the kit does

It adds an 802.11a/b/g/n dual-band radio to a printer that shipped without one, so the printer joins the wireless network and accepts jobs by address rather than over a cable. Dual band matters in a busy building: a 5 GHz association keeps the printer clear of the congested 2.4 GHz space that everything else is using. There is no Bluetooth in this kit. One point of planning: a ZT200-series printer has a single option slot, so fitting the wireless card means giving up whatever occupies it, typically the parallel or the second Ethernet option.

Fitting and firmware

Zebra documents this kit as field installable, so an existing printer can be converted in place rather than going back for service. Firmware is the prerequisite people miss: a ZT200-series printer needs V72.18.X or later and a ZT400-series printer needs V75.19.7Z or later before the card will be recognised. Check the printer's firmware level before ordering, and update it first if it is behind. The -097A suffix on this part number is the United States and Canada regulatory build; -097B is Japan and -097C covers the rest of the world, and the three are physically the same card with different approvals.

What we omit

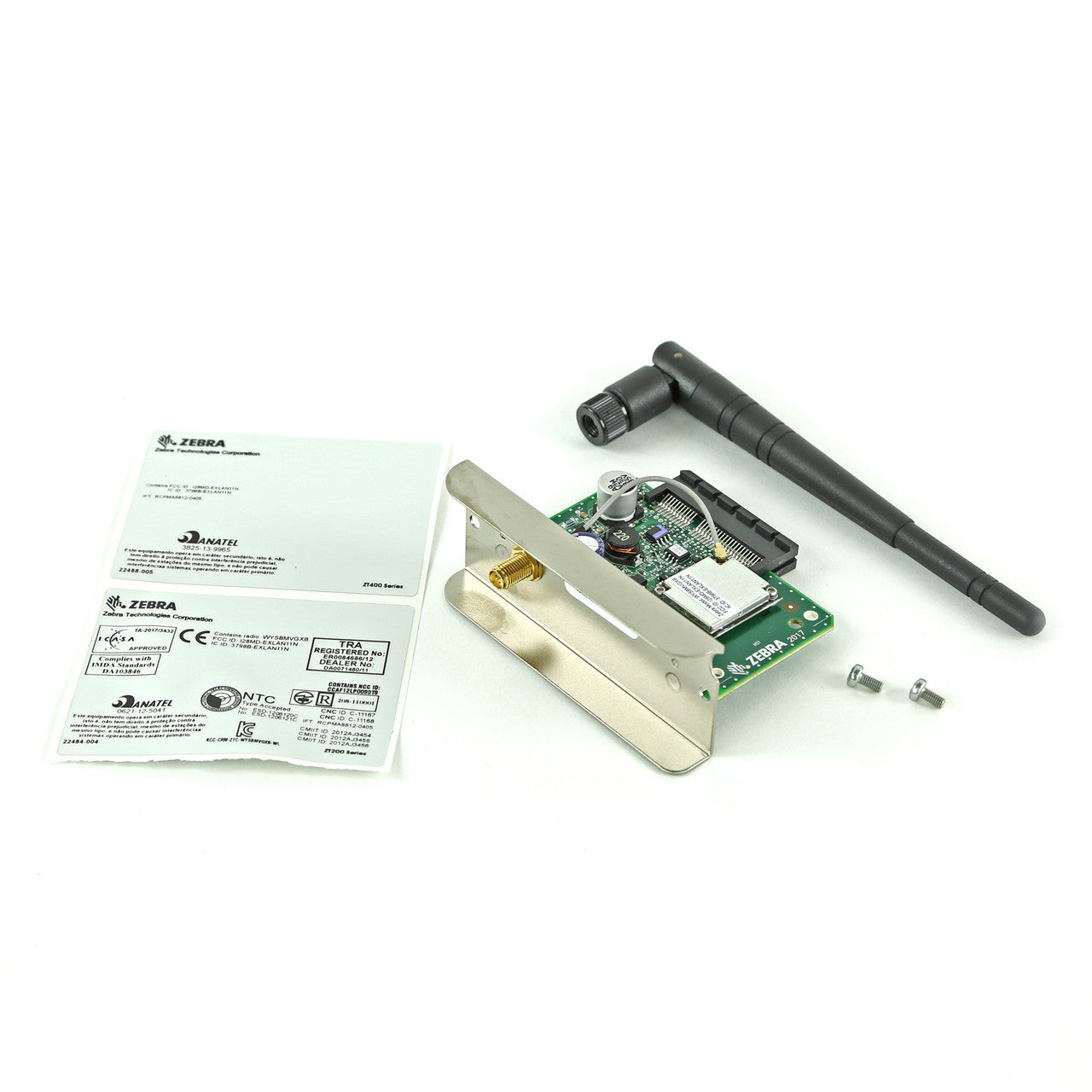

Zebra publishes no itemised carton contents for this kit and no separate warranty term for it, so we state neither. What we can tell you is what the card is and which printers accept it. If you need the carton contents confirmed before ordering, or you are not certain which generation of ZT printer you have, send us the printer's part number or a photograph of the rating label and we will check it against Zebra's parts catalogue for you rather than let you order on a guess.

If you are running a Zebra ZT210, ZT220, ZT230, ZT410 or ZT420 and want it on the wireless network, this is the kit, and we will confirm the fit against your printer's part number before you order. Contact us to learn more or secure this solution for your business today.
