Epson OmniLink TM-H6000VI Multifunction POS Printer Thermal Receipt Slip MICR Endorsement Serial C31CL25032

Key Features

• Prints thermal receipts at up to 500 mm per second, the fastest class in Epson's POS range.
• 9-pin impact slip printing handles cheques, forms and multipart documents up to 230 mm wide.
• Endorsement printing at up to 4.0 lines per second stamps the back of a cheque in the same pass.
• Magnetic ink character recognition reads cheque MICR lines with Epson-stated 99.9 percent accuracy.
• Takes one original plus three copies on multipart slip forms without a separate impact printer.
• Receipt printing at 180 dpi on 79.5 mm rolls, with 42, 46, 56 or 36 characters per line.
• USB Type-B, Ethernet 10/100 and a USB Type-A peripheral device port are built in on every model.
• This part number adds a Serial Connect-It interface module alongside the built-in ports.
• The PS-190 power supply is included in the box on this part number.
• Ships with an ERC-32(B) ribbon cassette, plus an ERC-43(B) cassette for endorsement printing.
• OPOS, JavaPOS, OPOS for .NET and the Epson Advanced Printer Driver support Windows and Linux hosts.
• Optional OT-WL06 wireless adapter adds Wi-Fi where a cabled network is impractical.

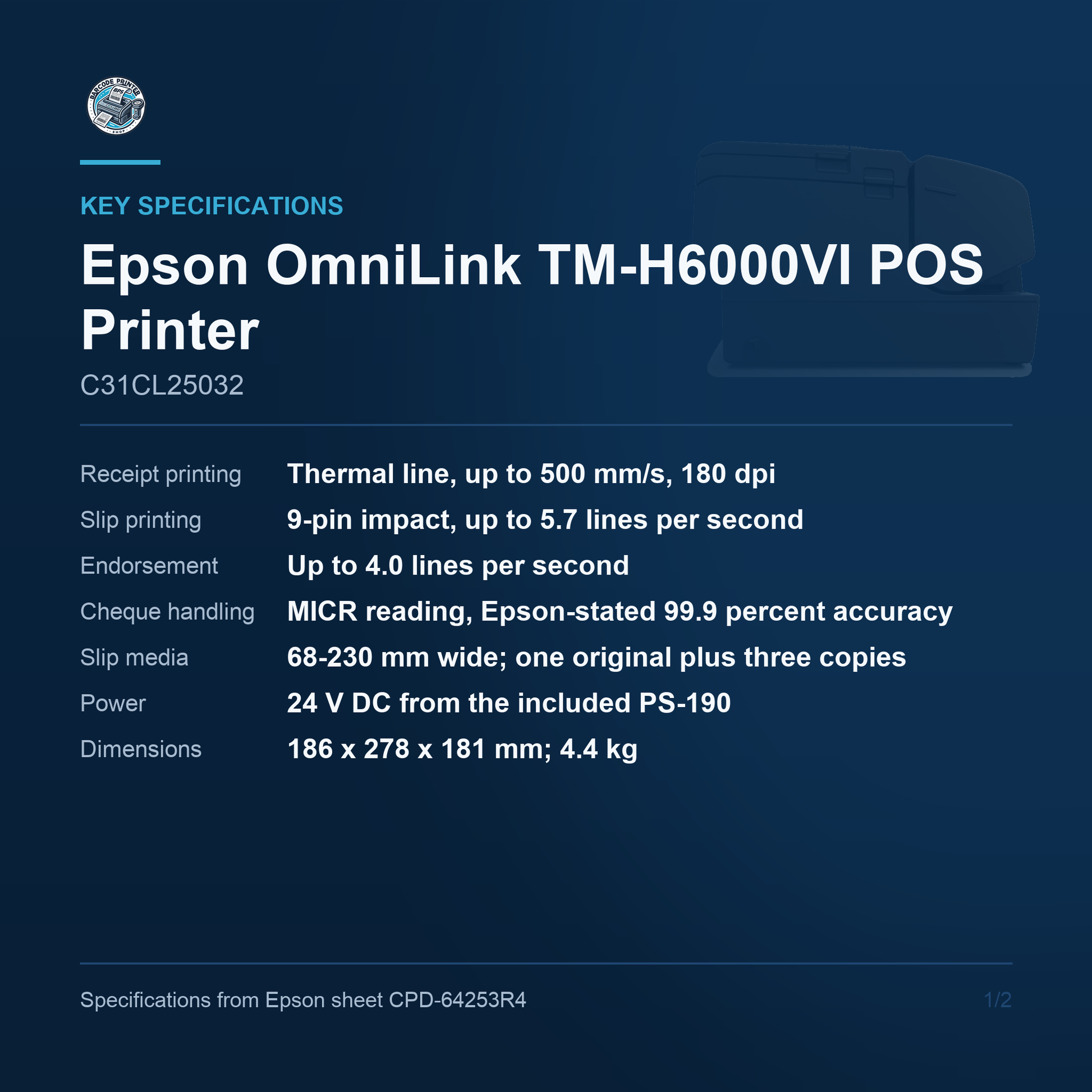

Key Specifications

• Print Method: Thermal line for receipts; 9-pin serial impact dot matrix for slip and endorsement
• Receipt Speed: Up to 500 mm/sec (19.69 in/sec) on 80 mm media
• Receipt Resolution: 180 dpi
• Slip and Endorsement Speed: Slip up to 5.7 lines per second; endorsement up to 4.0 lines per second
• Receipt Media: 79.5 mm wide roll, up to 83 mm roll diameter
• Slip Media: 68 to 230 mm wide by 68 to 297 mm high; one original plus three copies
• Print Columns: Receipt 42, 46, 56 or 36 cpl; slip 45, 60 or 30 cpl
• Cheque Handling: MICR reading with Epson-stated 99.9 percent accuracy
• Interfaces: USB Type-B, Ethernet 10/100, USB Type-A device port, plus a Serial Connect-It module
• Power: 24 V DC from the included Epson PS-190 power supply
• Dimensions and Weight: 186 x 278 x 181 mm (7.32 x 10.95 x 7.13 in); 4.4 kg (9.7 lb)
• In the Box: Printer, PS-190 power supply, ERC-32(B) ribbon cassette and ERC-43(B) endorsement ribbon

Multifunction Printing

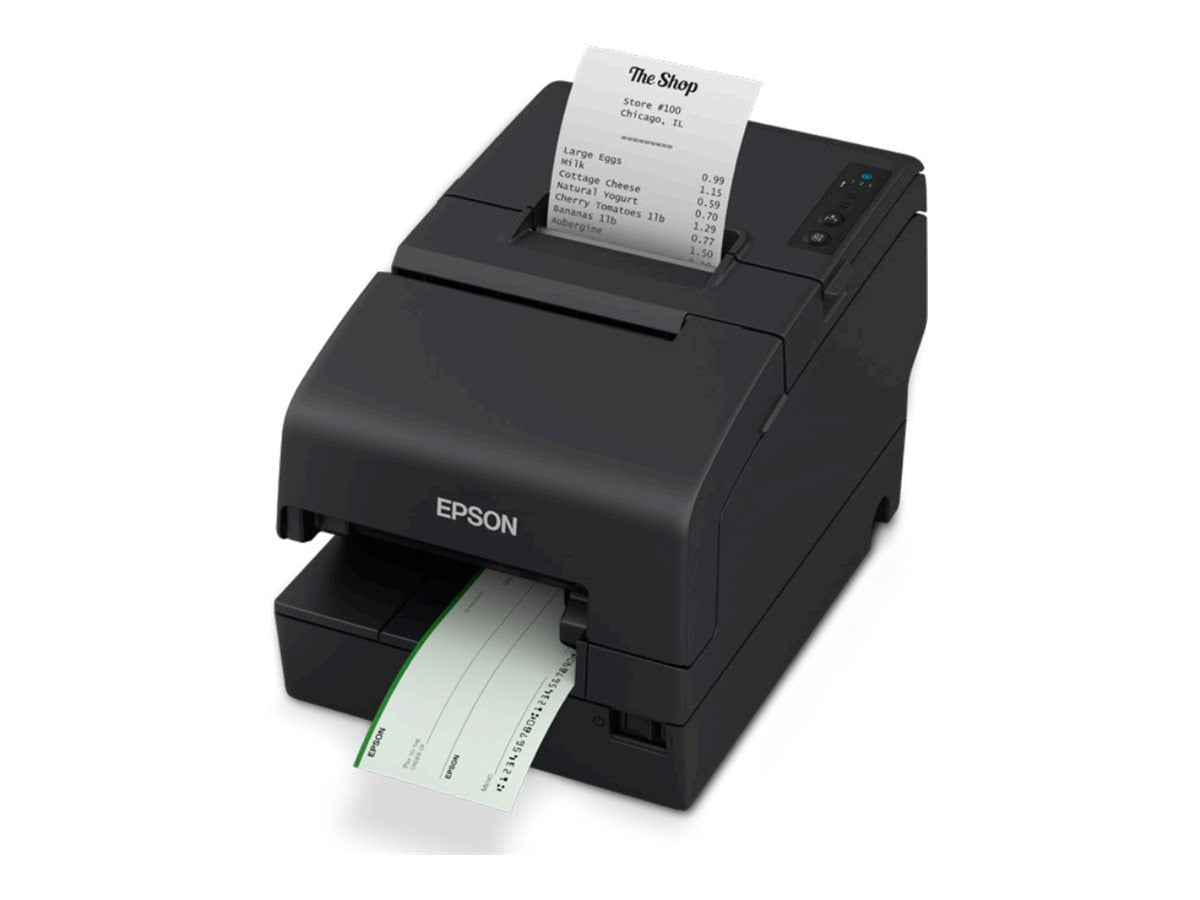

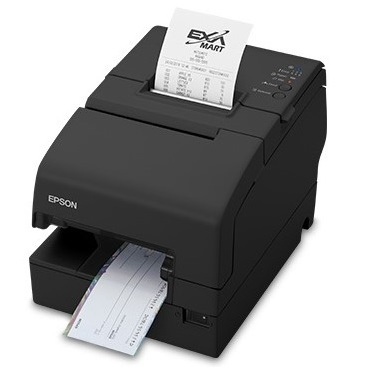

The Epson OmniLink TM-H6000VI (C31CL25032) does three printing jobs that most point-of-sale sites otherwise split across separate machines. It prints thermal receipts at up to 500 mm per second, which is the fastest class Epson builds. It prints slips using a 9-pin serial impact mechanism, handling cheques and multipart forms from 68 to 230 mm wide and 68 to 297 mm high at up to 5.7 lines per second, taking one original plus three copies. And it endorses, printing on the back of a cheque at up to 4.0 lines per second in the same pass that reads it.

MICR Cheque Reading

The magnetic ink character recognition reader is what makes this a bank-counter and retail cheque-handling printer rather than a fast receipt printer with a slip station bolted on. Epson states 99.9 percent MICR accuracy, and in practice the workflow is one motion: the cheque goes in, the MICR line is read, the endorsement is printed on the reverse and the document is returned. Note that Epson's specification sheet for this model makes no claim of cheque or document image scanning and publishes no scan resolution, so image capture should not be assumed as part of the feature set.

Connectivity

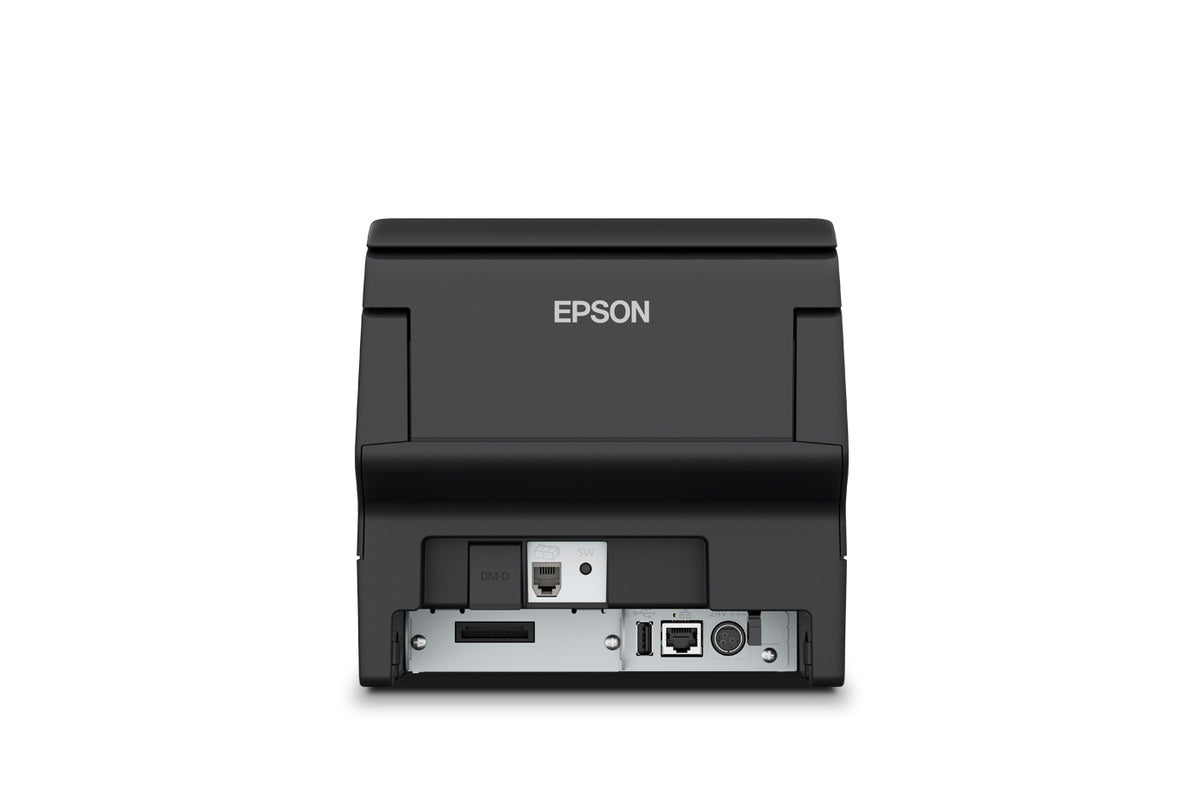

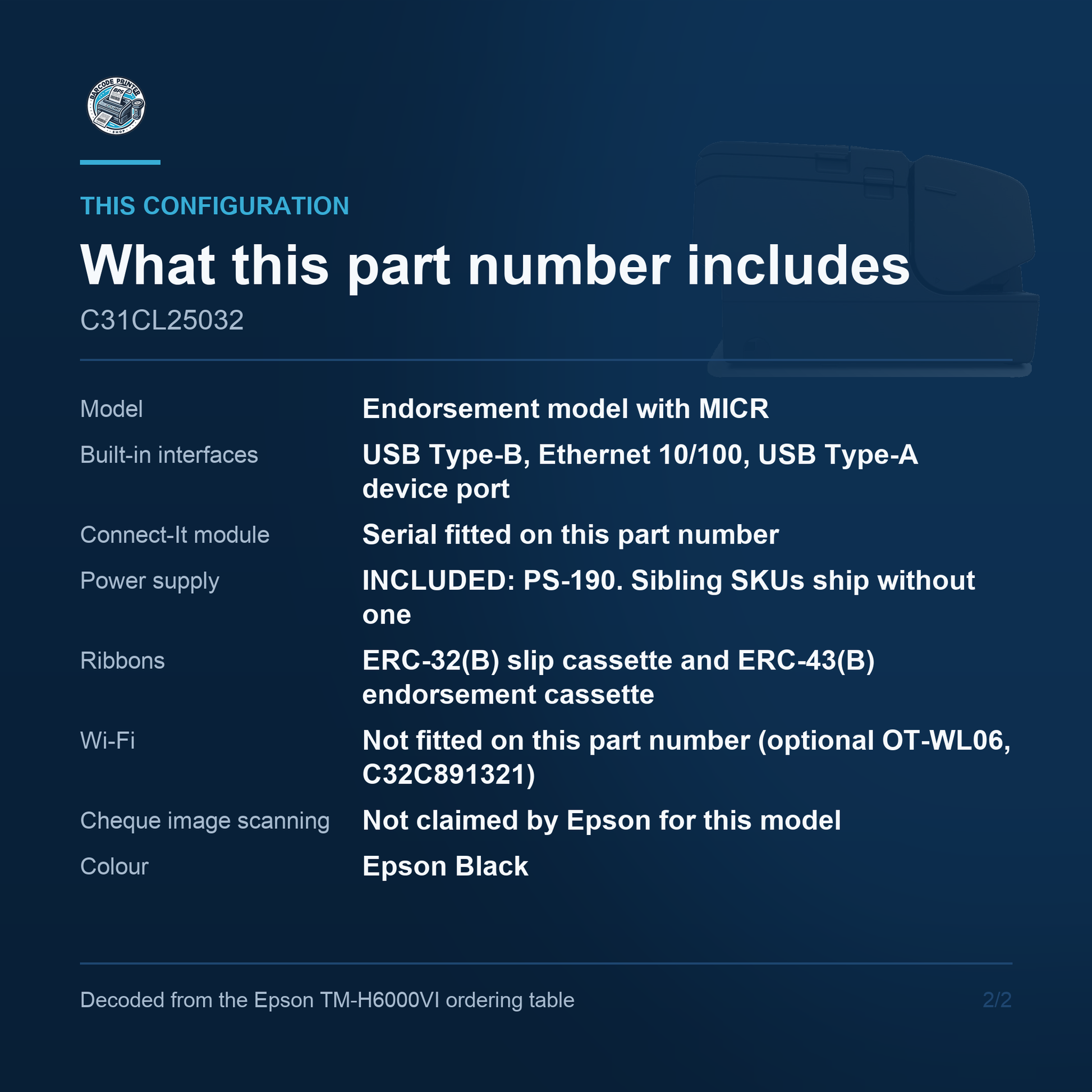

Every TM-H6000VI has USB Type-B, Ethernet 10/100Base-T/TX and a USB Type-A peripheral device port built in, and each part number then adds one Connect-It interface module on top. C31CL25032 is the Serial build, which suits sites with legacy point-of-sale hardware still speaking RS-232 alongside a networked host. Because Ethernet is standard rather than an option, the printer can be managed and driven over the network regardless of which module is fitted. Wireless is available through the optional OT-WL06 adapter where a cabled run is impractical.

Power Supply Included

This part number ships with the Epson PS-190 power supply in the box, confirmed by the power supply column in Epson's own ordering table. That is worth checking carefully on this model, because several sibling part numbers in the same table are marked as shipping without one, and a printer that arrives with no power supply is a printer that cannot be commissioned on the day it lands. Note also that some distributor listings name a PS-180 for this part; Epson's specification sheet and product page both specify the PS-190. The printer itself takes 24 V DC.

Ribbons and Consumables

The receipt station is thermal and needs no ribbon, but the slip and endorsement stations are impact mechanisms and do. The box contains an ERC-32(B) ribbon cassette for slip printing and, because this is an endorsement model, an ERC-43(B) cassette for the endorsement station. Both are ordinary stocked consumables, so factor them into the running cost alongside receipt paper. Epson does not publish an auto-cutter rating for this model, describing the mechanism only as a long-life printhead and auto cutter under a two-year limited warranty, so no cuts figure should be quoted for it.

Software Support

Driver and toolkit support covers OPOS ADK, JavaPOS ADK, OPOS ADK for .NET, the Epson Advanced Printer Driver, the TM Virtual Port Driver and a Linux printer driver, which between them cover the Windows and Linux point-of-sale environments this class of printer is normally deployed into. Note that Epson's specification sheet for the TM-H6000VI does not list a macOS driver, a CUPS driver or the ePOS SDK, unlike the lighter TM-T and TM-m series, so a macOS or web-native point-of-sale stack should be validated against this model before committing to it.

Where It Fits

The TM-H6000VI belongs where cheques and multipart forms are still part of the daily workflow alongside ordinary receipts: bank and credit union counters, pharmacy and grocery service desks, government payment windows, utility offices and any retail operation that still accepts cheques at the till. At 4.4 kg and 186 by 278 by 181 mm it is a substantial machine and needs counter depth allocated for it. For sites that only print receipts, a TM-T or TM-m series printer is smaller, cheaper and the more sensible choice.

For bank counters, service desks, pharmacies and retail operations that still handle cheques and multipart forms alongside receipts, the Epson OmniLink TM-H6000VI C31CL25032 consolidates three printers into one. Contact us to learn more or secure this solution for your business today.
