Zebra DS2208 Corded 1D/2D Imager Scanner Twilight Black USB Kit with Gooseneck Stand DS2208-SR7U2100SGW

Key Features

• Complete USB kit: DS2208 scanner, 7 ft straight shielded USB cable and a black Gooseneck Intellistand.
• Reads 1D and 2D barcodes, including QR, Data Matrix and PDF417, with a 640 x 480 area imager.
• Gooseneck Intellistand 20-71043-04R holds the scanner for hands-free reads at up to 30 inches per second.
• PRZM decode algorithms read poorly printed, damaged and low-contrast 1D and 2D barcodes on the first pass.
• Reads a 13 mil UPC from 0.5 to 14.5 inches and a 20 mil QR code out to 11 inches.
• Tolerates ±65 degree skew and pitch, plus full 360 degree roll, so labels need no careful lining up.
• Supports over 90 international keyboard layouts, so one part number serves multi-country deployments.
• Sealed to IP52 and rated for multiple 5 ft (1.5 m) drops to concrete and 250 tumbles.
• Backward compatible with Zebra LS2208 series cables, which lowers the cost of replacing laser scanners.
• Configured and updated with Zebra 123Scan and Scanner Management Service across a fleet.
• Covered by Zebra's 60-month warranty, the published warranty term for the corded DS2208 model.

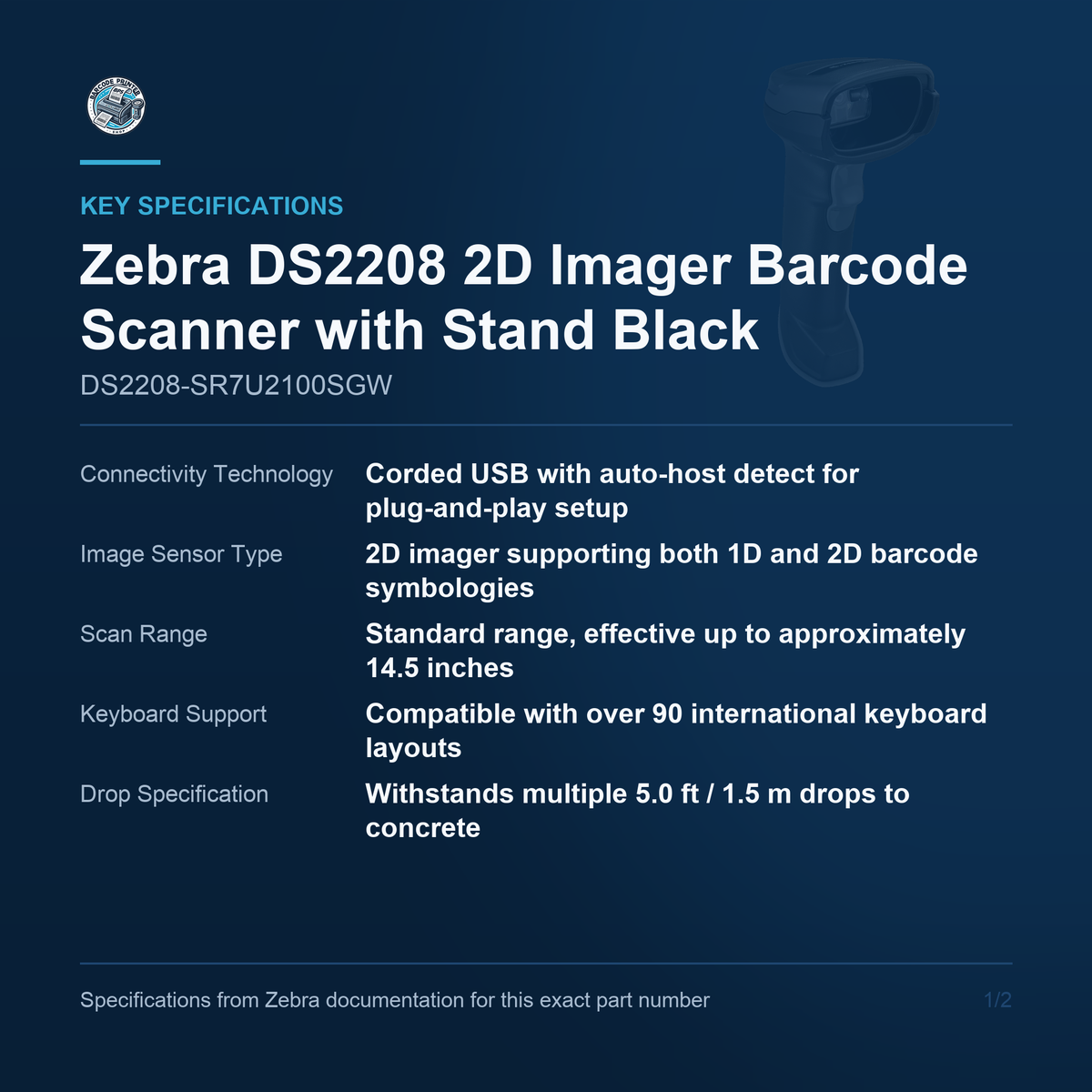

Key Specifications

• Scan Engine: 640 x 480 area imager with PRZM decode algorithms
• Field of View: 32.8° H x 24.8° V nominal
• Motion Tolerance: Up to 5 in/s handheld (13 mil UPC); up to 30 in/s hands-free
• Skew, Pitch and Roll: ±65°, ±65°, 0 to 360°
• Decode Range: 13 mil UPC 0.5 to 14.5 in; 20 mil QR 0 to 11 in; 5 mil Code 128 0.6 to 4.0 in
• Aimer and Illumination: 624 nm amber linear LED aimer; two 645 nm red LEDs
• Kit Contents: DS2208-SR00007ZZWW scanner, CBA-U21-S07ZBR 7 ft USB cable, 20-71043-04R stand
• Interface: USB (this kit); RS-232, keyboard wedge and IBM 46XX with other cables
• Sealing and Drop: IP52; multiple 5 ft (1.5 m) drops to concrete; 250 tumbles at 1.5 ft
• Dimensions and Weight: 6.5 x 2.6 x 3.9 in (16.5 x 6.6 x 9.9 cm); 5.7 oz (161.6 g)
• Environment: 32 to 122 F operating; -40 to 158 F storage; 5 to 95% RH
• Warranty: 60 months

What This Kit Is

DS2208-SR7U2100SGW is the complete USB kit for Zebra's DS2208 standard range imager in Twilight Black. It contains the DS2208-SR00007ZZWW scanner, a 7 ft (2.1 m) straight shielded USB cable with a Series A connector, Zebra part CBA-U21-S07ZBR, and the black Gooseneck Intellistand, part 20-71043-04R. Everything needed to put the scanner on a USB register or PC is in one box. If you already own LS2208 or DS2208 cables and stands, the scanner-only DS2208-SR00007ZZWW is the lower-cost way to add or replace units.

Imaging and Decoding

The DS2208 is a corded area imager with a 640 x 480 sensor, a 32.8 by 24.8 degree field of view, an amber linear aimer and red illumination. Zebra's PRZM decode algorithms are built to read barcodes that are poorly printed, damaged or low in contrast. It decodes the retail 1D codes, UPC/EAN, Code 128, Code 39 and GS1 DataBar, and 2D codes including PDF417, Data Matrix, QR, Micro QR, Aztec, MaxiCode, Han Xin and postal codes. That covers shelf and product labels, loyalty cards, coupons and the 2D codes printed on shipping documents and ID cards, from one scanner at the register or workstation.

Range and Tolerance

Decode range depends on the code: Zebra rates a 13 mil UPC from 0.5 to 14.5 inches, a 20 mil QR code out to 11 inches, a 10 mil Data Matrix from 0.3 to 6.2 inches and a 5 mil Code 128 from 0.6 to 4 inches. Handheld, the scanner tolerates motion up to 5 inches per second on a 13 mil UPC; set in a stand for hands-free use, it reads items swiped past at up to 30 inches per second. Skew and pitch tolerance is 65 degrees in each direction with full rotation, so an operator can scan from almost any angle without squaring the scanner to the label.

Hands-Free Use

The Gooseneck Intellistand turns the DS2208 into a hands-free scanner at the counter. With the scanner seated in the stand, items can be swiped past at up to 30 inches per second, and the operator lifts it out for bulky items or anything that will not reach the counter. The gooseneck lets the scanner be angled toward the customer for phone-based coupons and loyalty codes, or toward the cashier. Zebra also sells a Universal Gooseneck Intellistand, STND-GS00UNC-04, separately; the stand in this kit is the classic 20-71043-04R in black.

Durability

Zebra's current DS2208 specification rates the scanner to IP52 against dust and dripping liquid; an earlier version of the sheet said IP42, which some listings still repeat. It is rated for multiple 5 ft (1.5 m) drops to concrete and 250 tumbles in a 1.5 ft tumbler, and for ESD of 15 kV air and 8 kV direct. It operates from 32 to 122 degrees Fahrenheit and 5 to 95 percent relative humidity, non-condensing, and handles ambient light up to 10,000 foot-candles. The scanner weighs 5.7 ounces and measures 6.5 by 2.6 by 3.9 inches.

Deployment Tools

The DS2208 supports over 90 international keyboard layouts, so one part number can be deployed across countries and reconfigured if a unit moves to another market. Zebra's 123Scan utility sets parameters, updates firmware and generates reports, and Scanner Management Service handles remote management and asset information across a fleet. Developers can integrate the scanner with the Zebra Scanner SDK. Zebra states the DS2208 is backward compatible with LS2208 series cables, which lets a store replace laser scanners with 2D imagers without recabling every lane. The corded DS2208 carries a 60-month warranty.

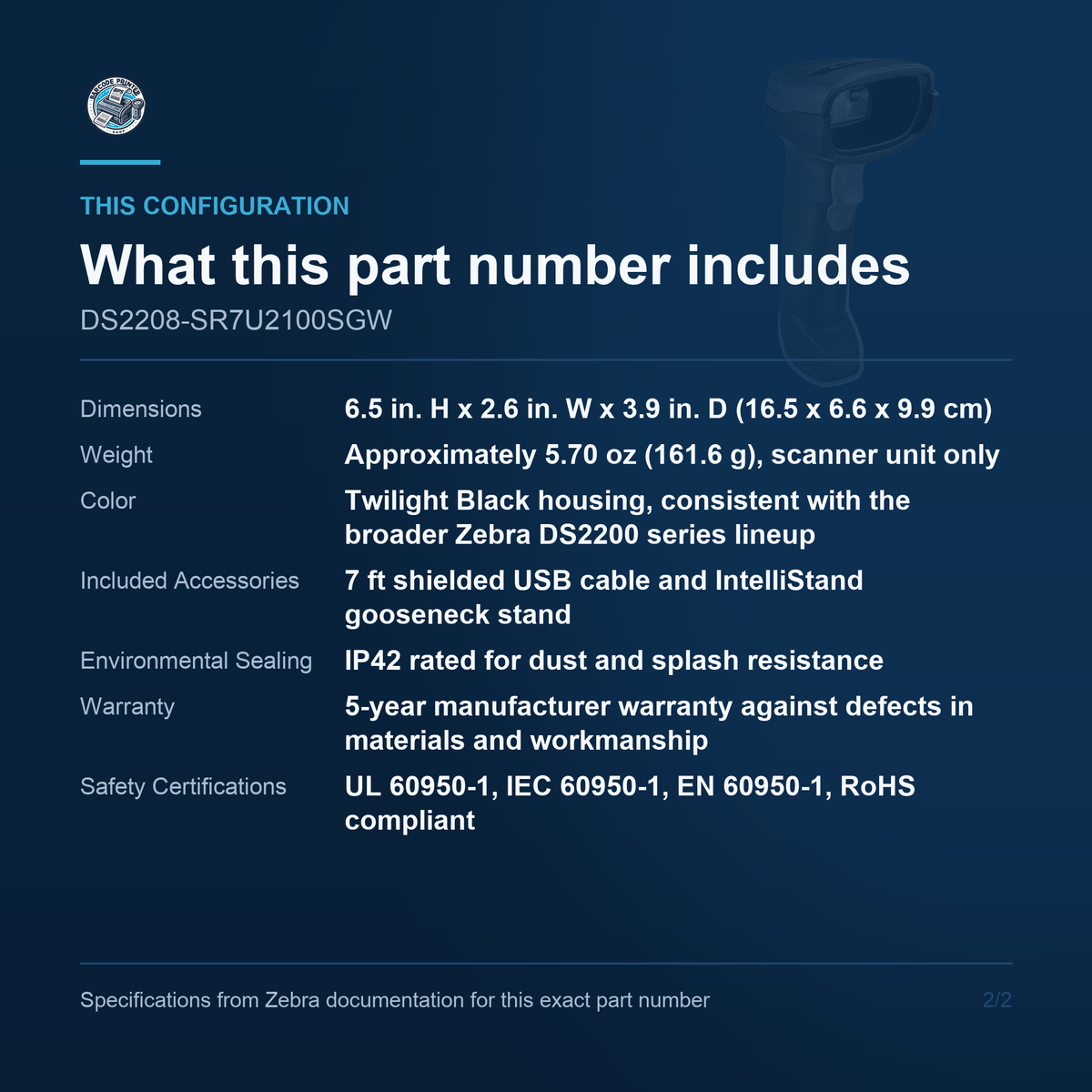

What Is Included

The kit contains three items: the DS2208-SR00007ZZWW scanner in Twilight Black, the CBA-U21-S07ZBR shielded USB cable, 7 ft long and straight rather than coiled, and the 20-71043-04R Gooseneck Intellistand in black. The USB cable connects to a PC, register or tablet with a standard USB Type-A port. For an RS-232, keyboard wedge or IBM host, order the scanner-only DS2208-SR00007ZZWW with the matching Zebra cable instead. Zebra also makes the DS2208 in Nova White, with a matching white stand, 20-71043-0BR.

For retail counters, service desks and receiving stations that want a 1D/2D imager, cable and stand in one order, the Zebra DS2208-SR7U2100SGW kit is ready to plug into a USB host. Contact us to learn more or secure this solution for your business today.
